Crankshaft Rear Seal (G1947459): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

CAUTION: Failure to follow this step may result in damage to the crankshaft rear oil seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The existing special tool JLR-303-1674 must be modified as illustrated before use.

Special Tool(s): JLR-303-1674
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the drive plate.
Refer to: FLEXPLATE
CAUTION:
- Make sure to align the special tool with the locating dowel.
- Make sure the protruding depth of the drill bit is double-checked after the tightening of the drill bit.
- Make sure the hole to be drilled is aligned in between 9 and 3 o'clock positions.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

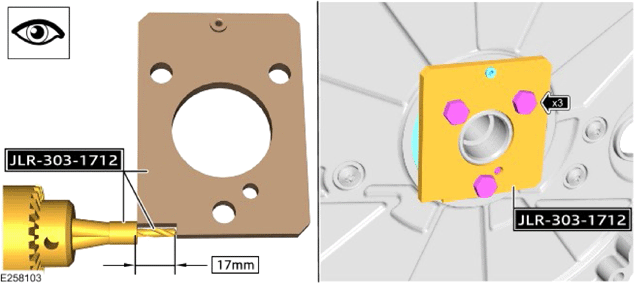

- Install the spacer to the drill bit and use the notch on the special tool to tighten the drill bit in the correct depth.
  Special Tool(s): JLR-303-1712

  General Equipment: Electric drill
- Install the special tool to the end of the crankshaft.
  Special Tool(s): JLR-303-1712
- Install and hand-tighten the 3 bolts.
  Special Tool(s): JLR-303-1712
- Drill through the upper hole of the special tool.
  Special Tool(s): JLR-303-1712
- Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

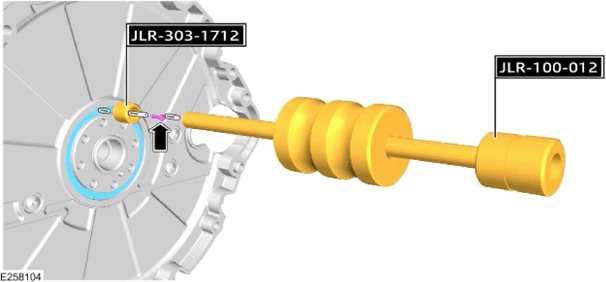

- Position the special tool as illustrated.
  Special Tool(s): JLR-303-1712
- Install and hand-tighten the screw through the special tool.
- Install the special tool, and remove the rear crankshaft seal.
  Special Tool(s): 100-012
