Crankshaft Pulley (G1947457): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

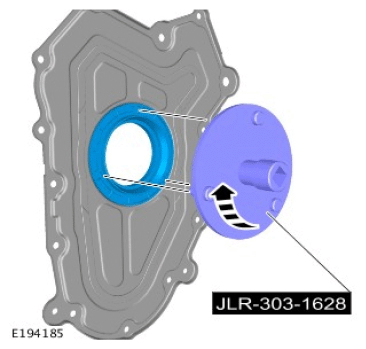

Using the special tool install a new front crankshaft seal.

Special Tool(s): JLR-303-1628

Renew Part: Crankshaft front oil seal Quantity: 1 .

Torque : 26 Nm
CAUTION: Make sure that the component is correctly located on the dowel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

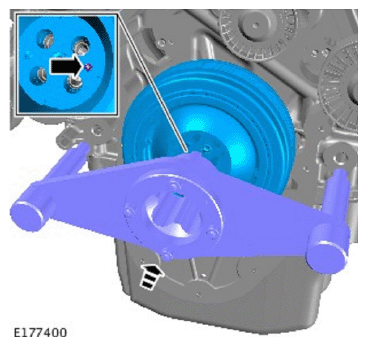

- Install the crankshaft pulley.
- Install the special tool.
  Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the new crankshaft damper bolts check the length of the thread as shown in the illustration. The new bolts must be 48mm in length.

Renew Part: Crankshaft pulley bolts Quantity: 1 .
CAUTION:
- Make sure that new bolts are installed.
- Tighten bolts in a diagonal sequence.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

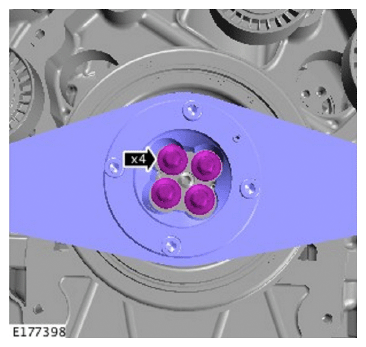

Install the 4 crankshaft damper bolts.

Special Tool(s): JLR-303-1630

Torque

Stage 1: 37 Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

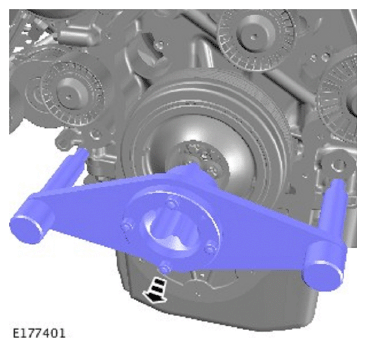

Remove the special tool.

Special Tool(s): JLR-303-1630
Install the intercooler bracket and tighten the 2 front bolts to the correct torque.
Torque : 90 Nm
- Install and tighten the 2 intercooler bracket nuts.
  Torque : 12 Nm
- Install the wiring harness onto the intercooler bracket.
Connect the electrical connector secured on the charge air cooler bracket.
Install the intercooler.
Refer to: CHARGE AIR COOLER
Install the accessory drive belt tensioner.
Refer to: ACCESSORY DRIVE BELT TENSIONER
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
