Camshafts (G1817149): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the fuel rail.

    Refer to: FUEL RAIL

  3. Remove the fuel injectors.

    Refer to: FUEL INJECTORS

  4. Remove the upper timing chain.

    Refer to: UPPER TIMING COVER

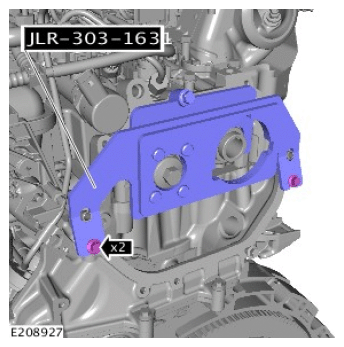

  5. CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.
    G11714760Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): JLR-303-1631

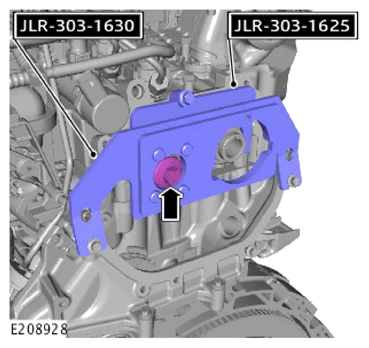

  6. G14280587Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen the camshaft gear bolt but do not remove at this stage.
    • Remove the special tool.

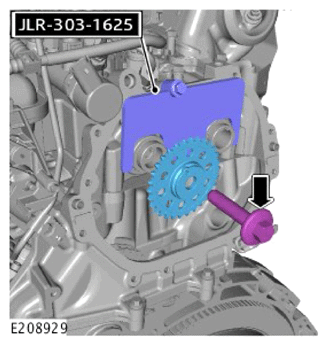

  7. Remove the camshaft gear and discard the bolt.
    G14280588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

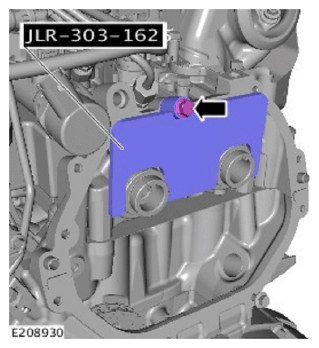

  8. G11714763Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-303-1625

  9. Remove the Noise, Vibration and Harshness (NVH) material.
    G11714764Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  10. Disconnect the 2 electrical connectors and position the harness to one side.
    G11714765Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. Remove the cylinder head temperature sensor electrical connector bracket.
    G11714656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  12. Position the crankcase breather to one side.
    G11714767Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  13. Remove the valve cover and discard the gasket.
    G11714768Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  14. NOTE: Note the orientation of the component prior to removal
    G11714769Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the camshaft bearing caps.
    • Remove the camshafts.
    • Inspect the components and renew if damaged or worn.
