Intake Air Temperature Sensor (G1885344): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the engine cover.

    Refer to: ENGINE COVER - TDV6 3.0L DIESEL

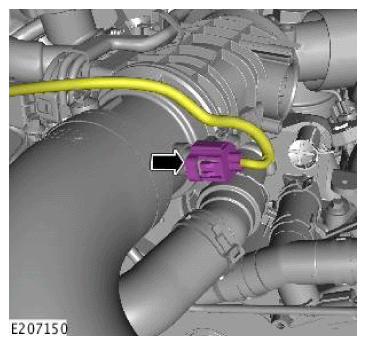

  3. G12010675Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

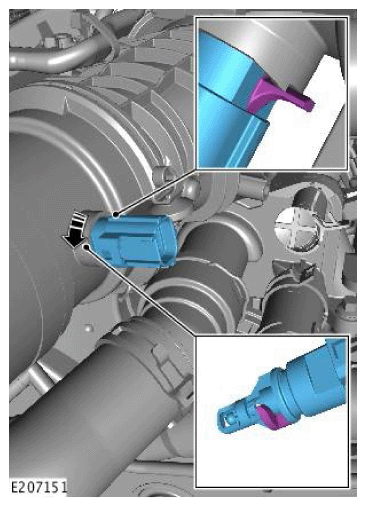

  4. CAUTION: Take care not to damage the Intake Air Temperature (IAT) sensor locking tab.
    G12010676Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Intake Air Temperature (IAT) sensor.
