Intake Air Temperature Sensor (G1885344): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION: Make sure that the component is clean and free of foreign material.

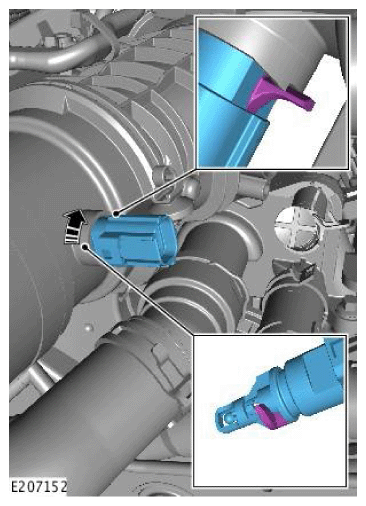

    G12010677Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the Intake Air Temperature (IAT) sensor.

  2. G12010675Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

  3. Install the engine cover.

    Refer to: ENGINE COVER - TDV6 3.0L DIESEL

  4. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
