Engine Oil Level Sensor (G2131641): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
- Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
-
CAUTION: Be prepared to collect escaping engine oil.

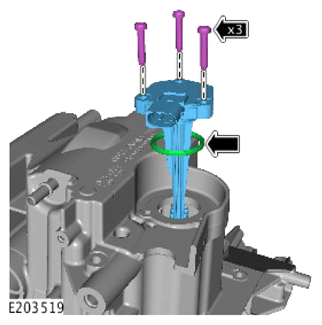

- Remove the 3 bolts.
- Remove the oil level sensor.
- Inspect the O-ring seal and replace if damaged or worn.
