Crankshaft Position Sensor Ring (G1888613): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the flexplate.
Refer to: FLEXPLATE
NOTE: The crankshaft position (CKP) sensor retaining bolt should not be removed from the CKP sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the CKP sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

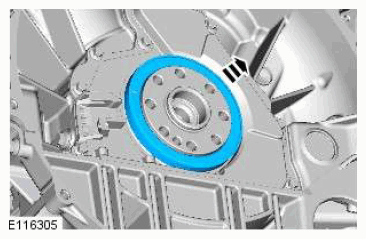

Remove and discard the CKP sensor ring.
