Crankshaft Position Sensor (G1885342): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

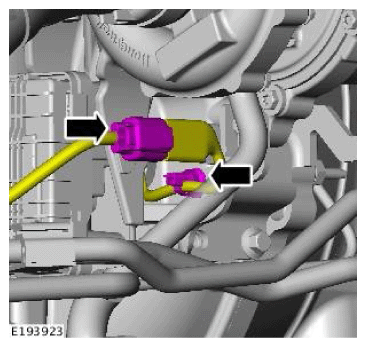

Disconnect the electrical connector and remove the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 5 turbocharger support bracket retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

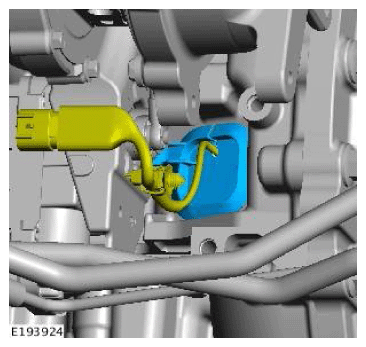

Remove the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

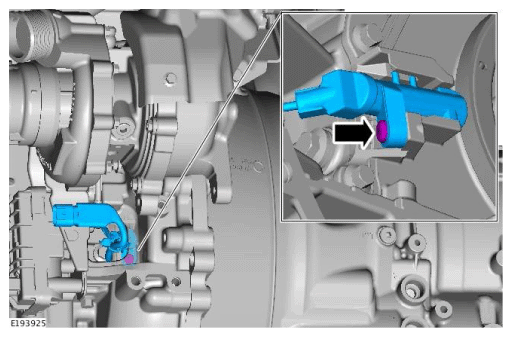

- NOTE: Make sure that the sensor retaining bolt is not fully removed from the sensor.

  Remove the Crankshaft Position (CKP) retaining bolt.
- Remove the CKP sensor.
