Camshaft Position Sensor (G1885341): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the left side Exhaust Gas Recirculation (EGR) valve.
Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 vacuum pipe retaining clips.
- Reposition the center vacuum pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 left side vacuum pipe retaining bolts.
- Reposition the left side vacuum pipes.
CAUTION: Be prepared to collect escaping engine coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the EGR coolant hoses from the engine outlet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 engine cooling pipe retaining bolts.
- Release the engine cooling pipe retaining clips.
- Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.
- Reposition the engine cooling pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove 6 left upper timing belt cover retaining bolts.
- CAUTION: Discard the gasket.

  Remove the left upper timing belt cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

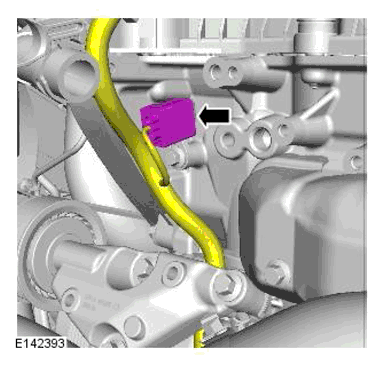

Disconnect the Camshaft Position (CMP) sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

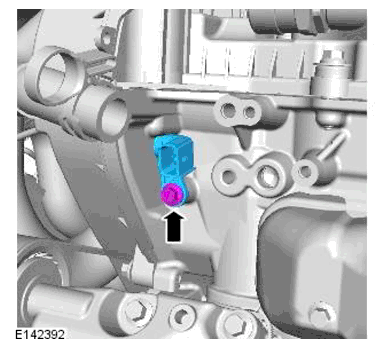

- Remove the CMP sensor retaining bolt.
- Remove and discard the CMP sensor.
