Turbocharger - INGENIUM I4 2.0L Diesel - Mid, Low Power (G1821580): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the Low Pressure (LP) Exhaust Gas Recirculation (EGR) valve.
Refer to: LOW PRESSURE EXHAUST GAS RECIRCULATION VALVE
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

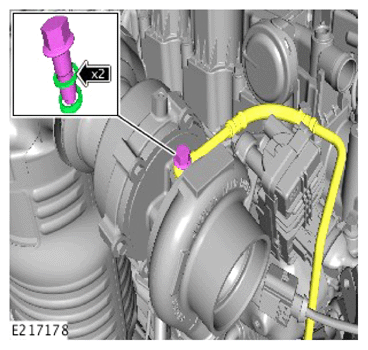

- Release the turbocharger oil feed pipe.
- Remove and discard the 2 washers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

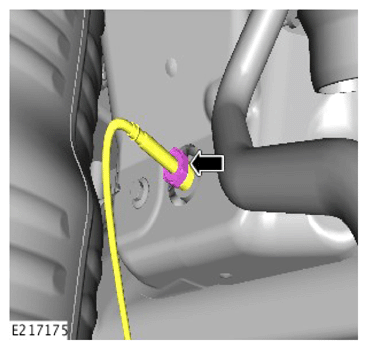

Release the exhaust manifold temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

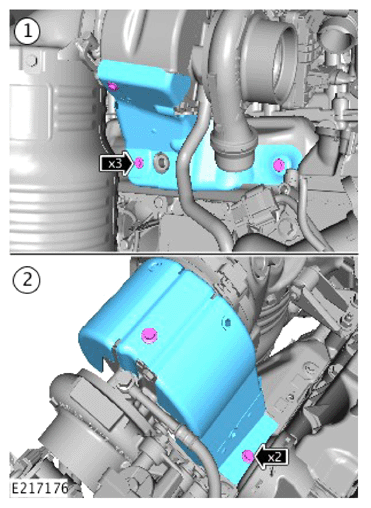

- Remove the turbocharger heatshields.
Remove the air deflector.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

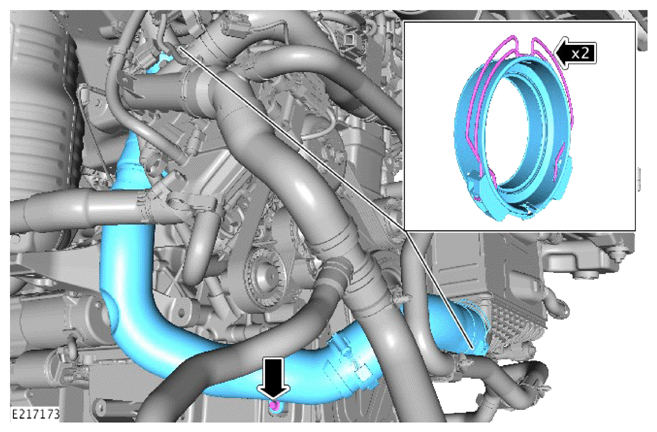

- Remove the charge air cooler intake pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

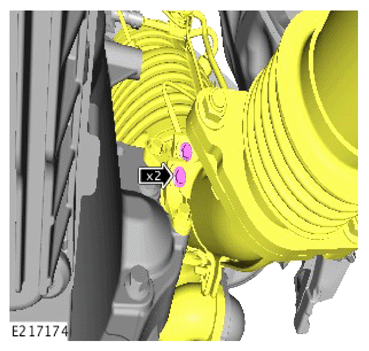

- Release the catalytic converter lower mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

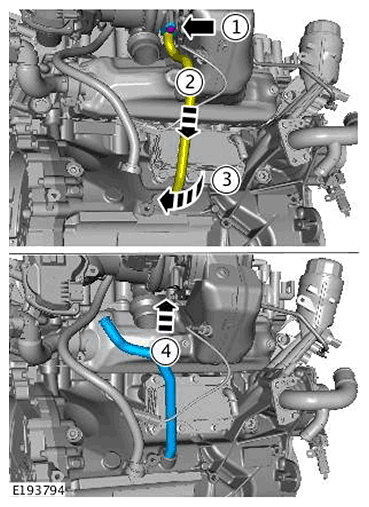

- Remove the bolt.
- Push the oil return pipe into the engine and release it from the turbocharger.
- Remove the oil return pipe.
- Remove and discard the 2 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Cut the clamp in the position illustrated.
CAUTION: Do not use power tools to remove or install the clamp.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

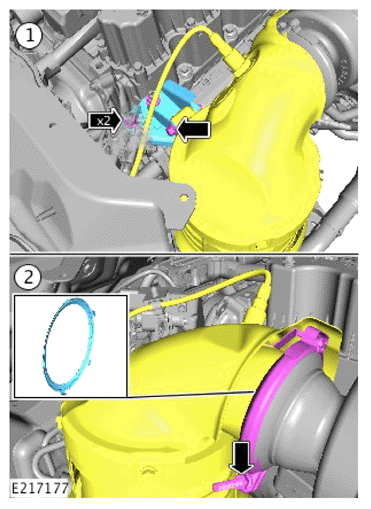

- Remove the catalytic converter upper mounting bracket.
- Release the catalytic converter from the turbocharger.
- Remove and discard the catalytic converter to turbocharger clamp.
- Remove and discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

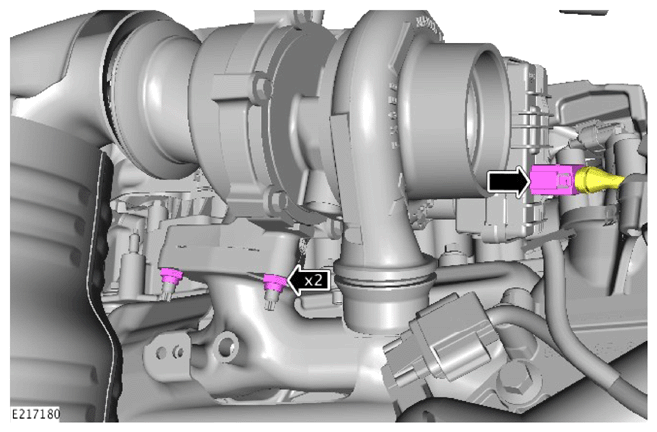

- Disconnect the electrical connector.
- Remove the 2 turbocharger nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

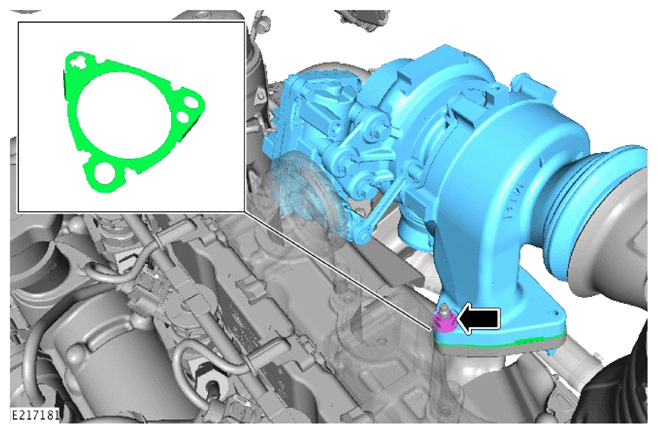

- Remove the turbocharger.
- Remove and discard the gasket.
