Post Selective Catalyst Reduction Soot Sensor (G2270474): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Do not allow the post selective catalyst reduction soot sensor module to hang unsupported.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the 2 nuts.
- Remove the centre undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 8 screws.
- Remove the 5 bolts.
- Remove the 3 nuts.
- Remove the right side undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

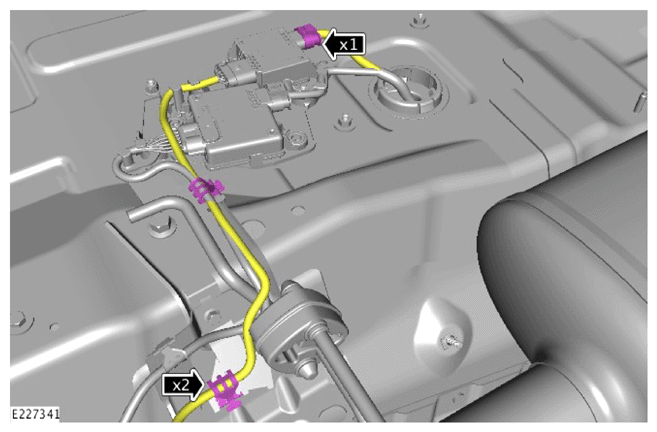

- Disconnect the electrical connector.
- Release the wiring harness from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

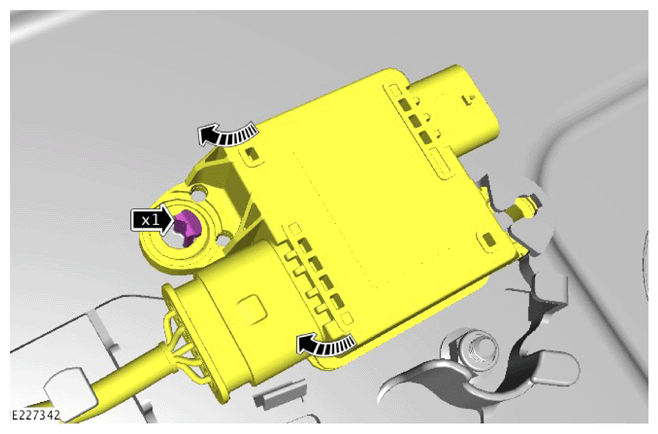

Release the post selective catalyst reduction soot sensor module from the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

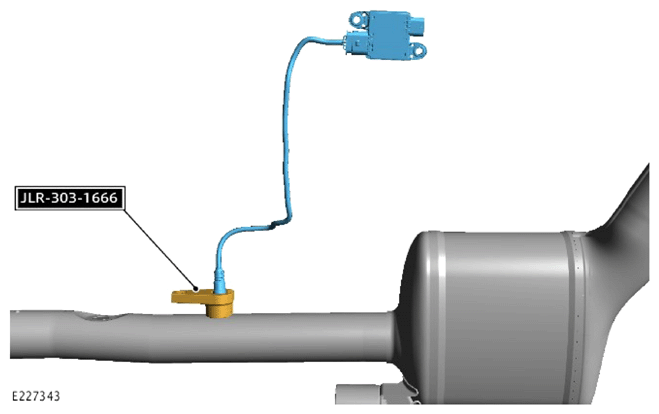

Using the special tool, remove the post selective catalyst reduction soot sensor.

Install the Special Tool(s): JLR-303-1666
