Oil Pressure And Temperature Sensor (G1892882): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the accessory drive belt.

    Refer to: ACCESSORY DRIVE BELT

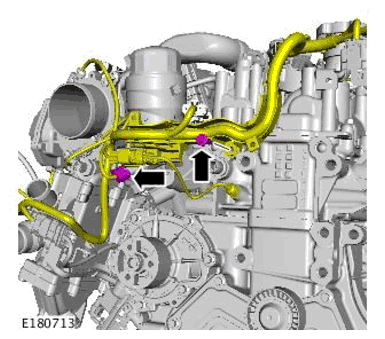

  3. G11699804Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector for the oil pressure and temperature sensor.
    • Release the wiring harness and reposition away from the oil pressure and temperature sensor.
  4. CAUTION: Be prepared to collect escaping oil.

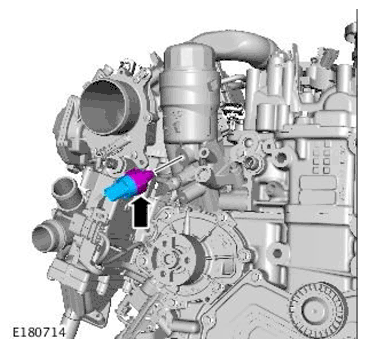

    G11699805Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the oil pressure and temperature sensor.
