Intake Air Temperature Sensor (G2110326): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the air cleaner assembly.
Refer to: AIR CLEANER
-
NOTE: Remove and discard the O-ring seal.

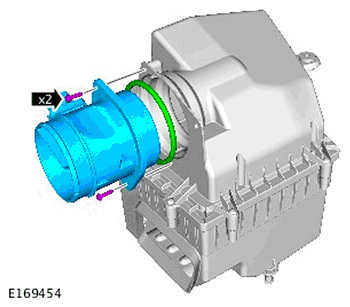

Remove the Intake Air Temperature (IAT) Sensor.
