Cylinder Head Temperature Sensor (G1947561): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the intake air resonator.

    Refer to: INTAKE AIR RESONATOR

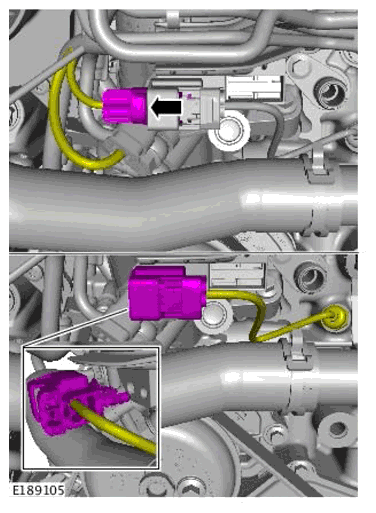

  3. G11699750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the cylinder head temperature Sensor electrical connector and release the wiring loom from the retaining clip.

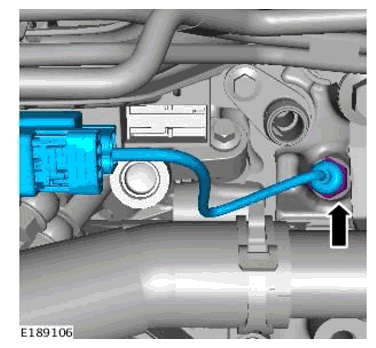

  4. G11699751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the cylinder head temperature sensor.
