Cylinder Block Temperature Sensor (G1856651): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Removal steps in this procedure contains installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. Refer to: THERMOSTAT

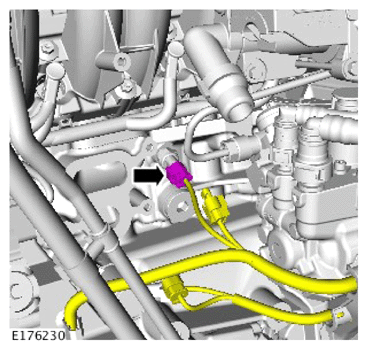

  3. G14289521Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

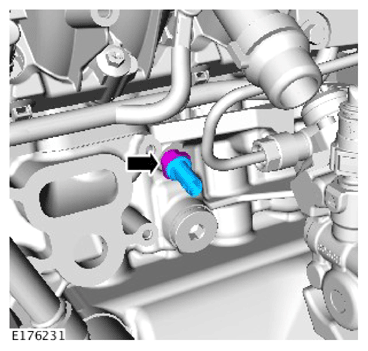

  4. CAUTION: Discard the cylinder block temperature sensor.
    G14289522Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm
