Camshaft Position Sensor (G1947559): Installation

WARNING: This page is about a different variant/trim than selected.

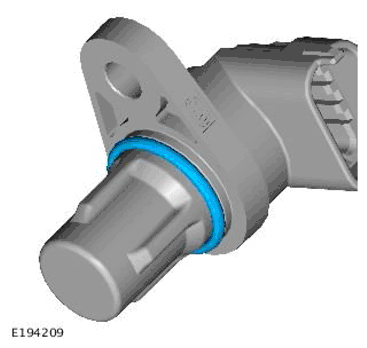

  1. G11699742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Inspect the seal. Replace if damaged.
    • Lubricate the O-ring seal with clean engine oil.
  2. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11699741Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the CMP sensor and tighten the retaining bolt to the correct torque.

    Torque  : 8 Nm

  3. G11699740Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the NVH pad.

  4. G11714729Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine cover.

  5. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
