Roof Opening Panel Motor (G2059636): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the startup battery.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the headliner.

    Refer to: HEADLINER

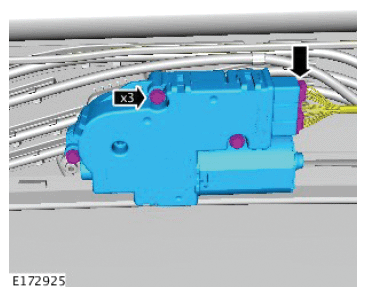

  3. G12566387Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the roof opening panel motor electrical connector.
    • Remove the 3 screws.
    • Remove the roof opening panel motor.
