Roof Opening Panel Guide Rails (G2299454): Removal
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure shows components for the left side, the right side is similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the roof opening panel.
Refer to: ROOF OPENING PANEL GLASS
- Remove the roof opening panel air deflector.
Refer to: ROOF OPENING PANEL AIR DEFLECTOR

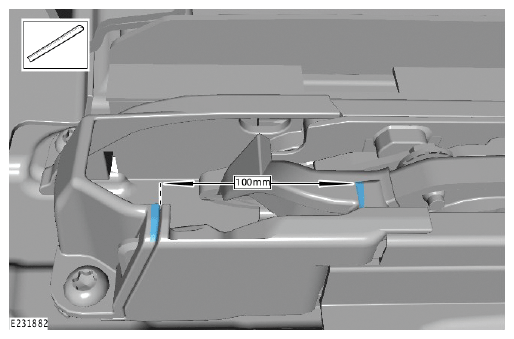

Operate the roof panel rearward until a gap of 100 mm is achieved as illustrated.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the roof opening panel motor.
Refer to: ROOF OPENING PANEL MOTOR
-
NOTE: Note the orientation of the component prior to removal.

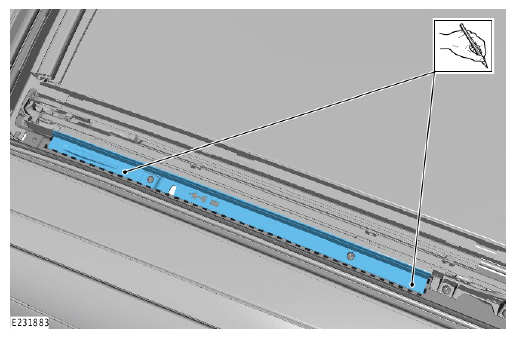

To aid installation, use a suitable pencil to mark the roof opening panel frame as illustrated.

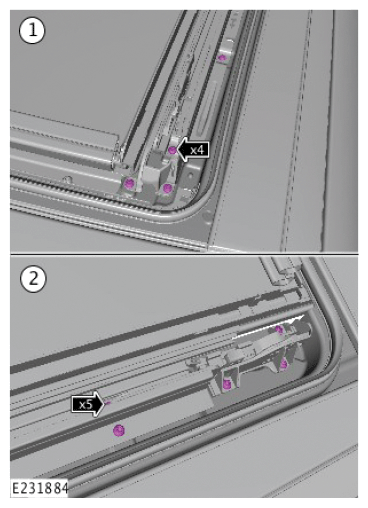

Remove the 9 roof opening panel guide rail bolts.
-
CAUTION:
- Make sure to protect surrounding trim components from roof blind motor cable debris. Failure to follow this instruction could cause damage to the vehicle.
- Gloves must be worn when handling the roof blind motor cables.

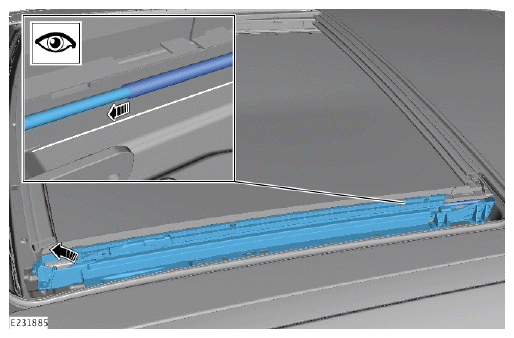

NOTE: The roof opening panel guide rail should be removed forward to release the roof panel motor cables.Carefully remove the roof opening panel guide rail.
