Roof Opening Panel Blind Motor Cables (G2578202): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Lower the headliner for access.
Refer to: HEADLINER
Remove the roof opening panel glass.
Refer to: ROOF OPENING PANEL GLASS
Remove the roof opening panel air deflector.
Refer to: ROOF OPENING PANEL AIR DEFLECTOR
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

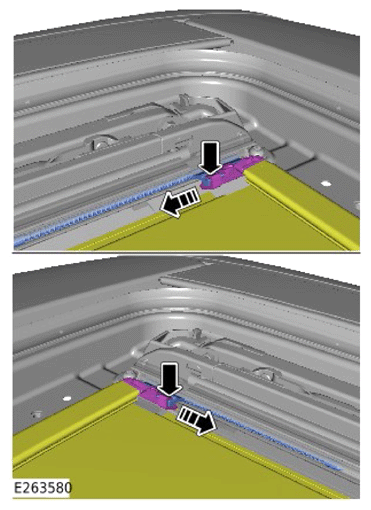

- Release the 2 slide shoe clips.
- Release the roof blind from the 2 cable plates.
CAUTION:
- The roof blind is under spring tension.
- Make sure the roof blind is correctly supported at all times.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

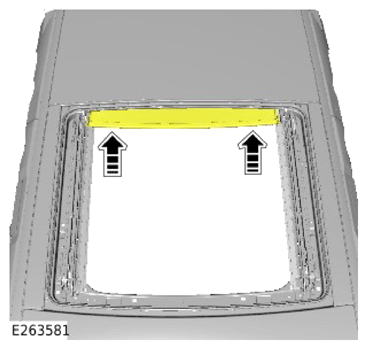

Reposition the roof blind to the rear of the frame assembly, carefully rest the beam on the rear seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

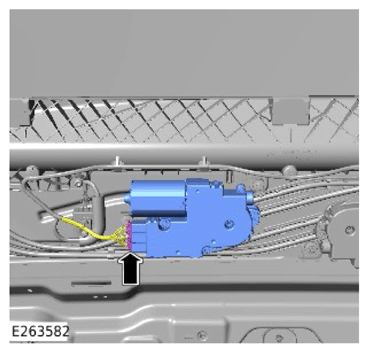

Disconnect the roof blind motor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

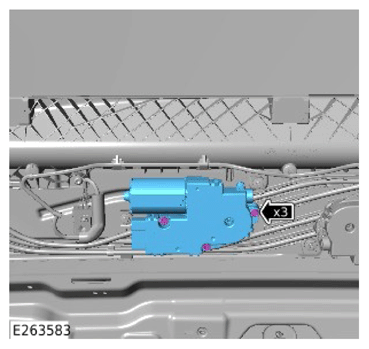

- Remove the 3 bolts.
- Remove the roof blind motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

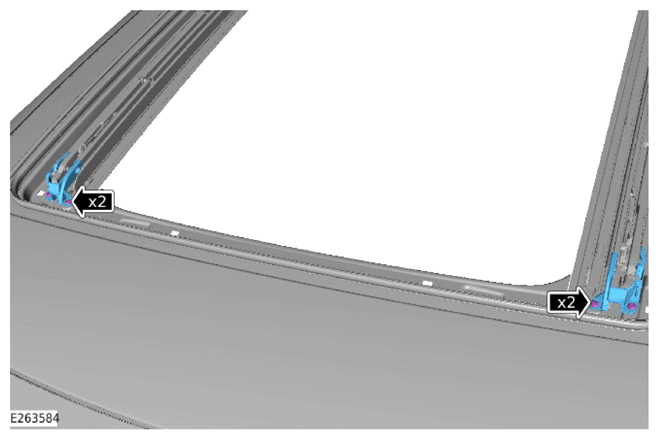

- Remove the 4 bolts.
- Remove the 2 inner locators from the frame assembly guides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

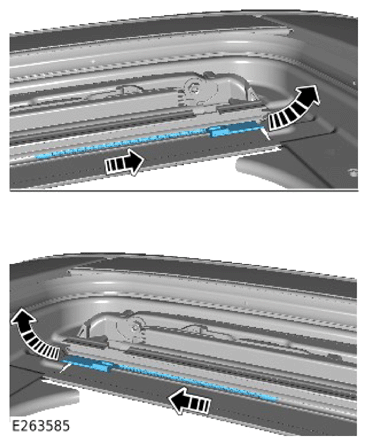

- Use a suitable tool to push the roof blind motor cables to the front of the frame.
- Remove the 2 roof blind motor cables from the frame assembly in the direction illustrated.
