Roof Opening Panel Blind Motor (G2059638): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the startup battery.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the headliner.
Refer to: HEADLINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Mark the position of the pull bar on the rails.
- Note the position of the pull bar sliding ends on the rails.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

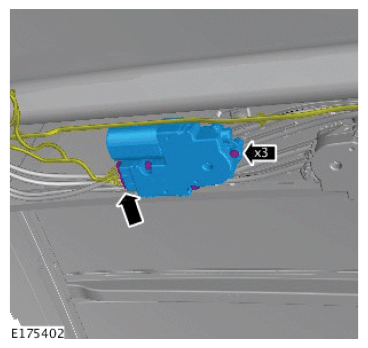

- Disconnect the blind motor electrical connector.
- Remove the 3 screws.
- Remove the opening panel blind motor.
