Roof Opening Panel Blind (G2059637): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the startup battery.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the headliner.
Refer to: HEADLINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

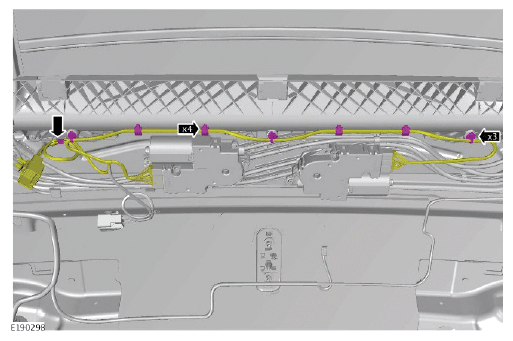

Remove the 9 wiring harness clips.
CAUTION: Take extra care not to damage the component.

NOTE: An audible noise will be heard to confirm that the opening panel shoes have been released from the drive cable.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

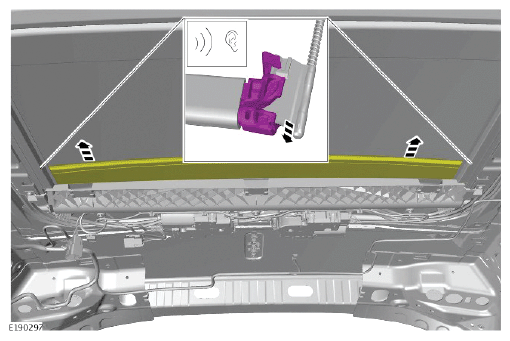

Pull the opening panel blind beam forward to unlock the sliding shoes.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

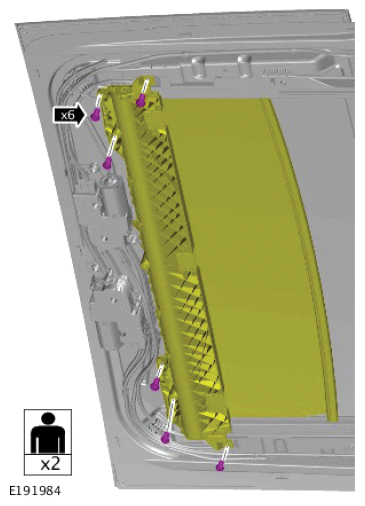

Remove the 6 screws.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

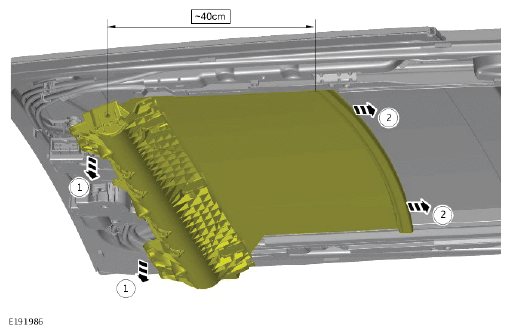

- Pull the blind beam forward as illustrated.
- Release the opening panel blind cassette from the roof panel.
WARNING: This step requires the aid of another technician.

NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

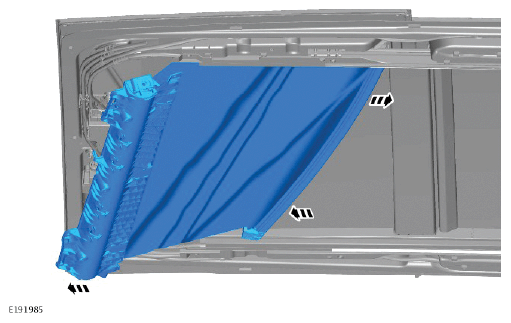

- Hold the opening panel blind assembly and position the blind beam out of the guide rail.
- Remove the roof opening panel blind.
CAUTION: If the correct clip is not available, make sure that a suitable hardened pin is used such as a drill bit, do not use a paperclip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

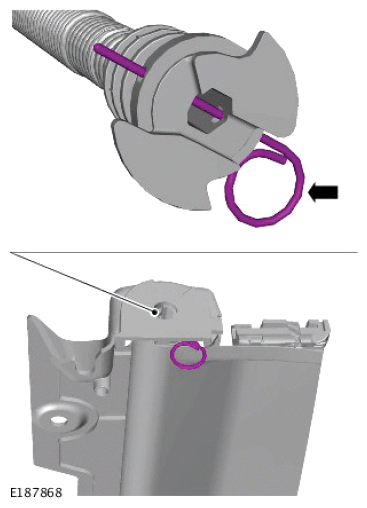

Roll the blind and insert a locking pin.
CAUTION: Note the installed position of the component(s) prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

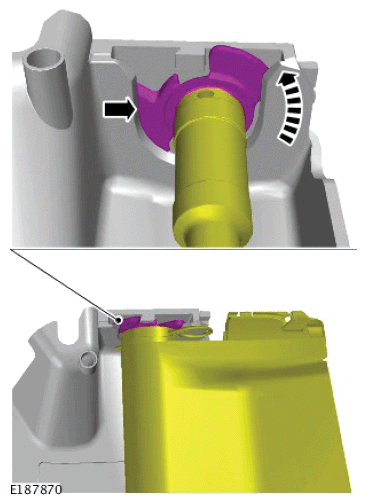

Unlock the blind beam from casette as shown.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

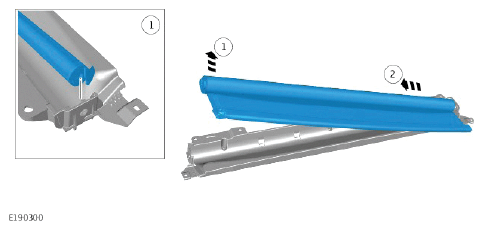

Remove the roof opening panel blind beam.
