Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol (G2020323): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some components shown removed for clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

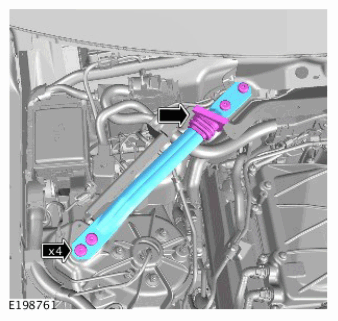

- Remove the 4 bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

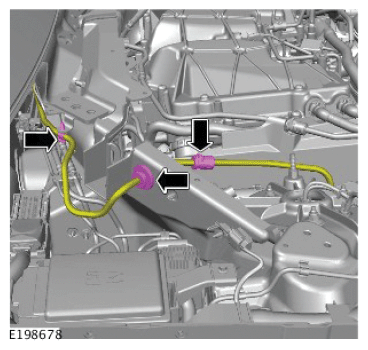

Disconnect the brake booster vacuum hose quick release connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

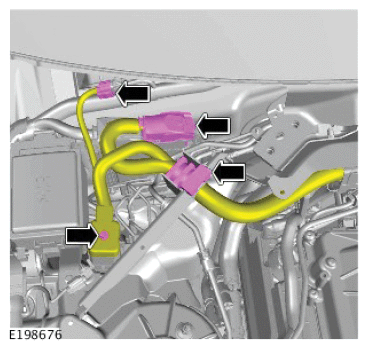

- Disconnect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

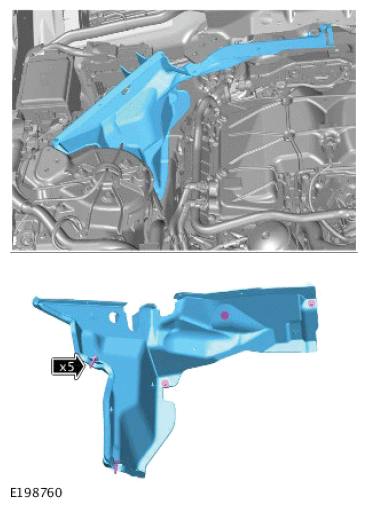

- Remove the 5 retaining bolts.
- Remove the secondary bulkhead right panel.
