Secondary Bulkhead Right Panel - TDV6 3.0L Diesel (G2020324): Removal
WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
- Remove the cowl panel.
Refer to: COWL PANEL
- Drain the engine coolant.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

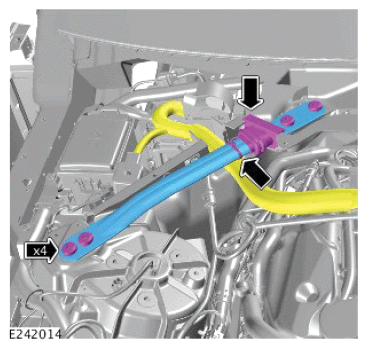

- Remove the 4 bolts.
- Remove the engine compartment brace.

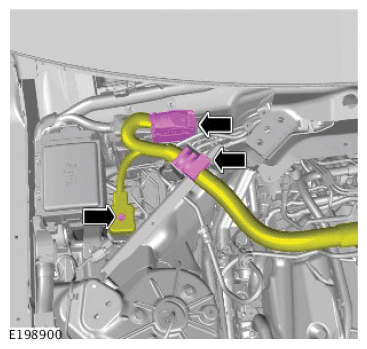

- Disconnect the 2 electrical connectors.
- Release the engine wiring harness from the bulkhead panel.

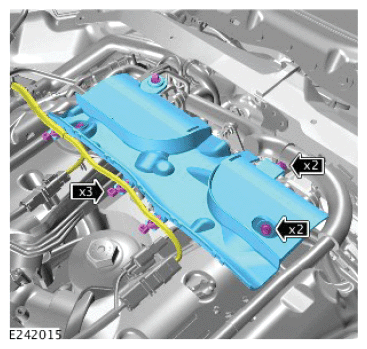

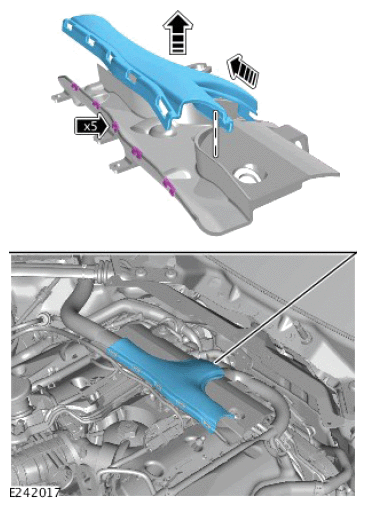

Release the engine wiring harness cover.
- Remove the 4 bolts.
- Release the 3 wiring harness clips.
- Remove the rear engine cover.

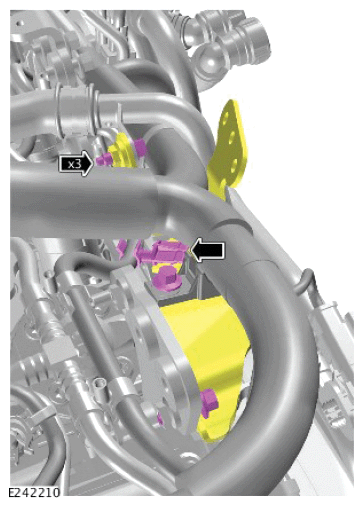

- Remove the 3 bolts.
- Release the pipe clip.
- Remove the bolt.
- Release the wiring harness clip.
- Remove the wiring harness bracket.

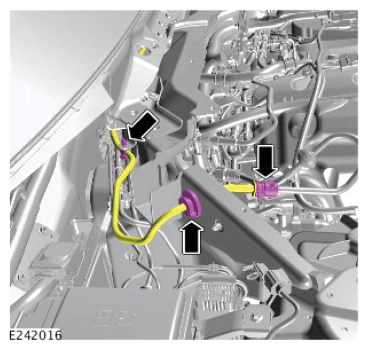

- Disconnect the brake booster vacuum pipe quick release connector.
- Release the vacuum pipe from the bulkhead panel.

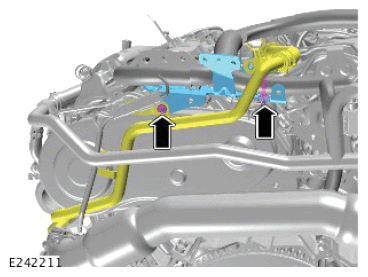

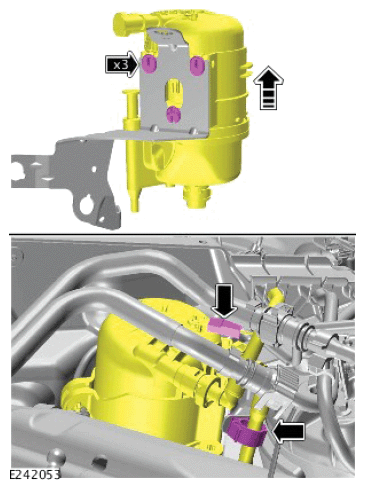

- Disconnect the ground cable connector.
- Release the clip.
- Release the fuel filter and move aside.

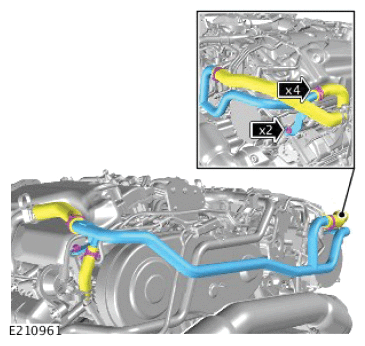

- Disconnect the 4 coolant hoses.
- Remove the 2 bolts.
- Remove the coolant pipe assembly.

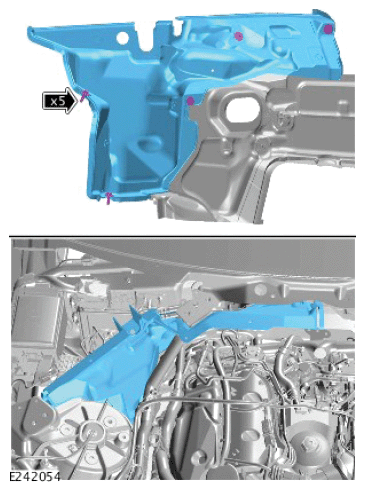

- Remove the 5 bolts.
- Remove the secondary bulkhead right panel.
