Secondary Bulkhead Right Panel - INGENIUM I4 2.0L Petrol (G2020325): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

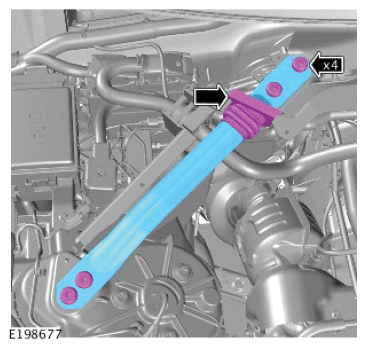

- Remove the four bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

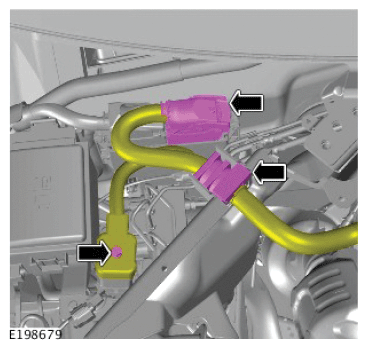

- Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

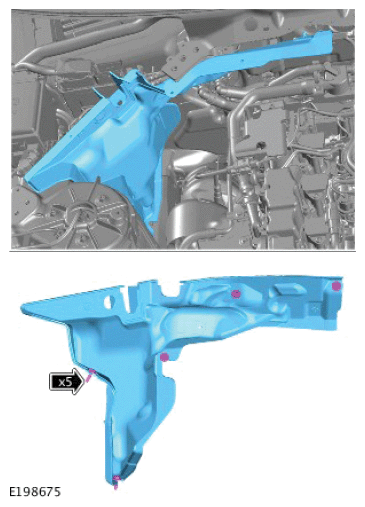

- Remove the 5 retaining bolts.
- Remove the secondary bulkhead right panel.
