Secondary Bulkhead Right Panel - INGENIUM I4 2.0L Diesel (G2020321): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Care must be taken to avoid damaging the surrounding components.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

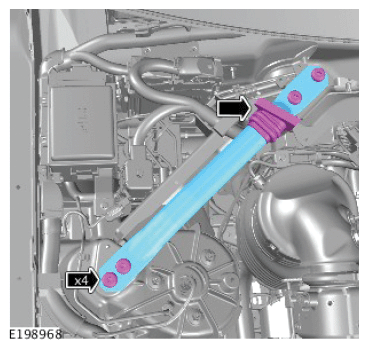

- Remove the 4 bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors.
- Release the wire harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

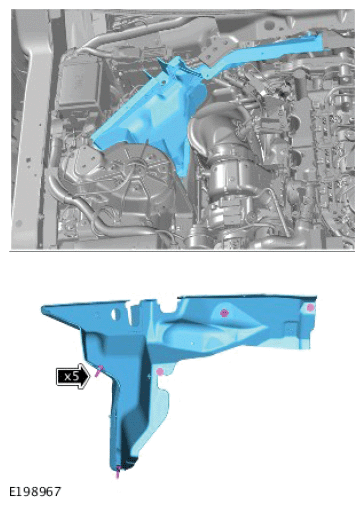

- Remove the 5 bolts.
- Remove the secondary bulkhead right panel.
