Secondary Bulkhead Right Outer Panel - V8 S/C 5.0L Petrol (G2263569): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead right inner panel.
Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

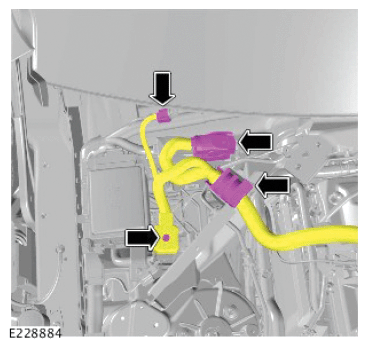

- Disconnect the 3 electrical connectors.
- Release the grommet.
- Move the wiring harness aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

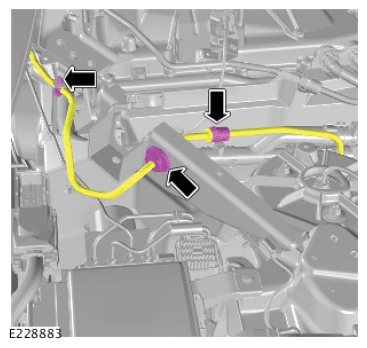

- Disconnect the brake booster vacuum pipe.
- Release the clip.
- Release the grommet.
- Move the brake booster vacuum pipe aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

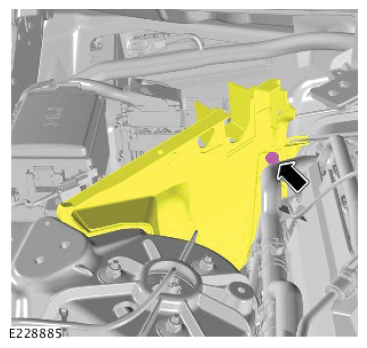

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

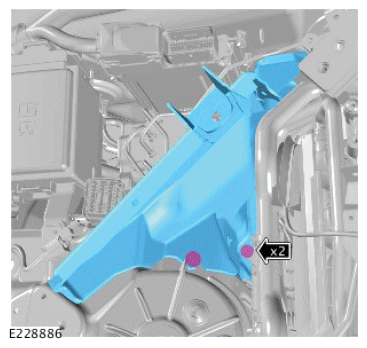

- Remove the 2 bolts.
- Remove the secondary bulkhead right outer panel.
