Secondary Bulkhead Lower Panel - V6 S/C 3.0L Petrol (G2049168): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the engine assembly.

    Refer to: ENGINE

  3. Remove the secondary bulkhead left panel.

    Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

  4. Remove the steering column lower shaft.

    Refer to: STEERING COLUMN LOWER SHAFT

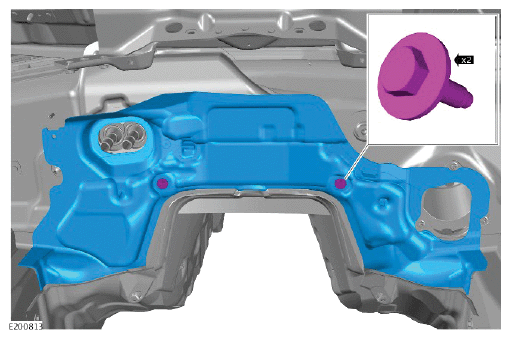

  5. G12563215Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the secondary bulkhead lower panel.
