Secondary Bulkhead Left Panel - V6 S/C 3.0L Petrol (G2020318): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

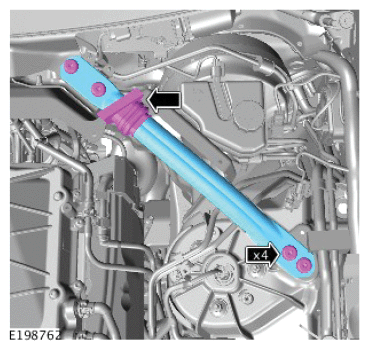

- Remove the 4 bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

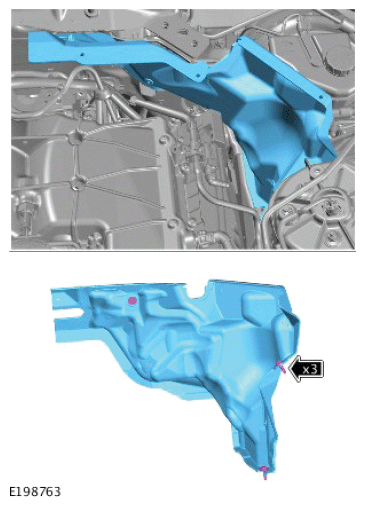

- Remove the 3 bolts.
- Remove the secondary bulkhead left panel.
