Secondary Bulkhead Left Panel - TDV6 3.0L Diesel (G2020319): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - TDV6 3.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

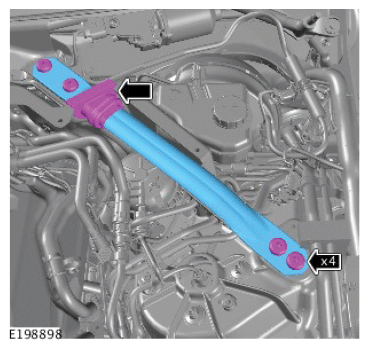

- Remove 4 bolts.
- Remove the engine compartment brace.
Remove the fuel filter.
Refer to: FUEL FILTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

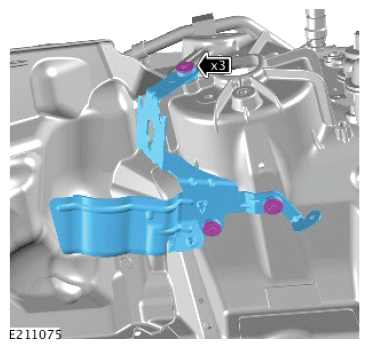

- Remove the 3 bolts.
- Remove the fuel filter bracket.
Evacuate the Air Conditioning (A/C) System.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
CAUTION: Remove and discard the O-ring seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

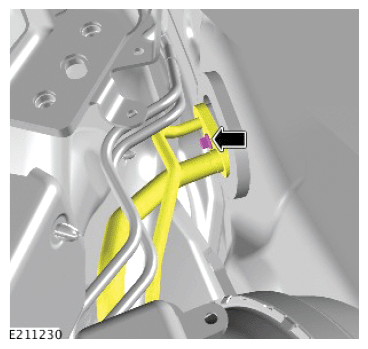

- Remove the bolt.
- Disconnect the Air Conditioning (A/C) pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

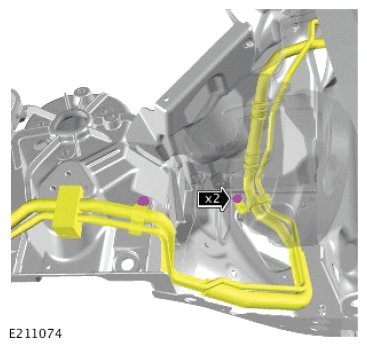

- Remove the 2 bolts.
- Release and reposition the Air Conditioning (A/C) pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

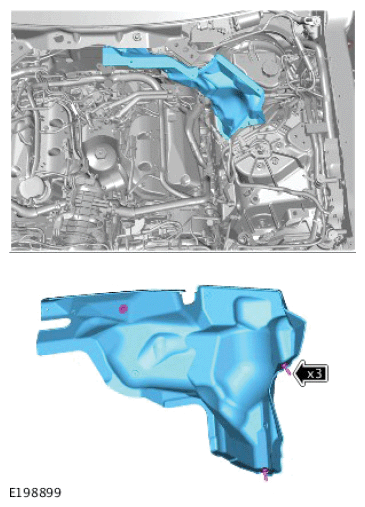

- Remove the 3 bolts.
- Remove the secondary bulkhead left panel.
