Secondary Bulkhead Left Outer Panel - V8 S/C 5.0L Petrol (G2263567): Removal

WARNING: This page is about a different car, the 2019 Land Rover Range Rover Velar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the secondary bulkhead left inner panel.
Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

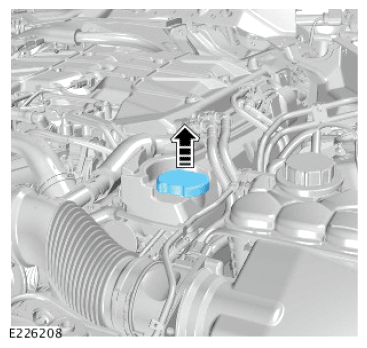

Remove the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

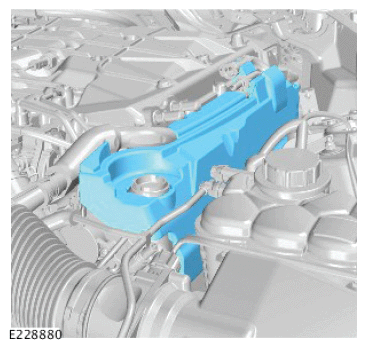

Remove the Noise, Vibration and Harshness (NVH) pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

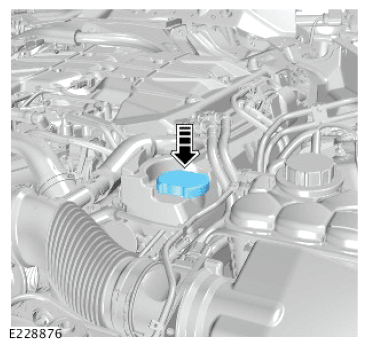

Install the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

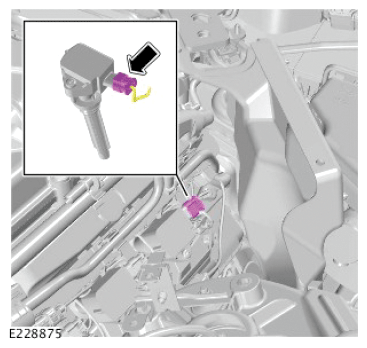

Disconnect electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

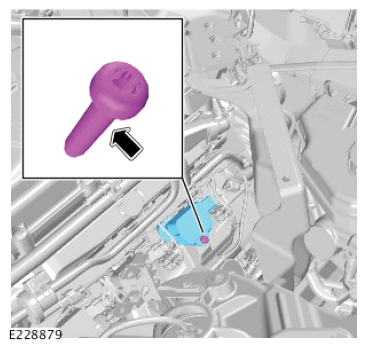

- Remove the bolt.
- Remove the ignition coil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

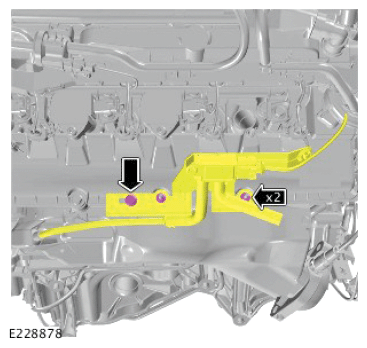

- Remove the bolt.
- Remove the 2 nut.
- Release the exhaust back-pressure sensor and bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

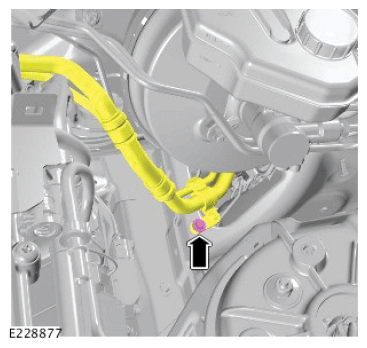

- Remove the bolt.
- Release the Air Conditioning (A/C) pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

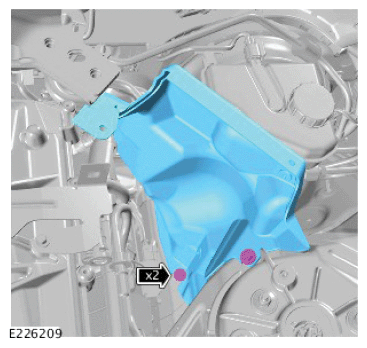

- Remove the 2 bolts.
- Remove the secondary bulkhead left outer panel.
