Block Heater (G2033416): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Partially drain the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Remove the generator.

    Refer to: GENERATOR

  5. G11718118Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

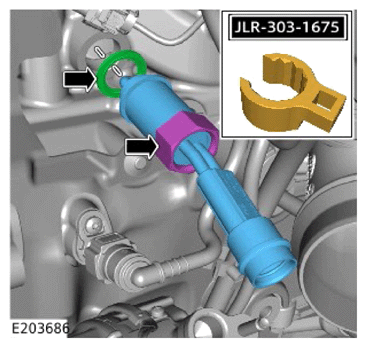

  6. G14099185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the block heater.
    • Remove the gasket.
    • Examine the gasket for wear and replace it if required.
