Instrument Panel Console (G2018927): Removal

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
NOTE: Repeat the procedure for the other side.

Remove both 'A' pillar trim panels.

Refer to: A-PILLAR TRIM PANEL
Remove the floor console.
Refer to: FLOOR CONSOLE
Remove the instrument panel lower trim panel.
Refer to: INSTRUMENT PANEL LOWER TRIM PANEL
Remove the clockspring.
Refer to: CLOCKSPRING
Remove the glovebox.
Refer to: GLOVEBOX
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the in-vehicle temperature sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

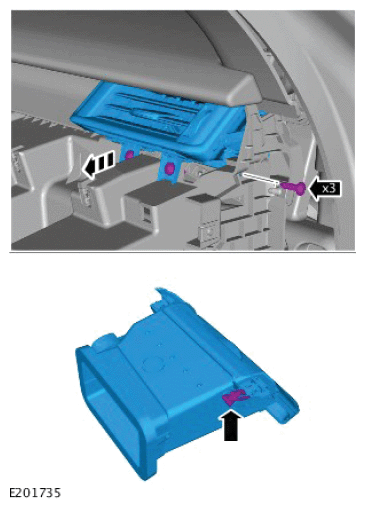

Remove the passenger side face level vent.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

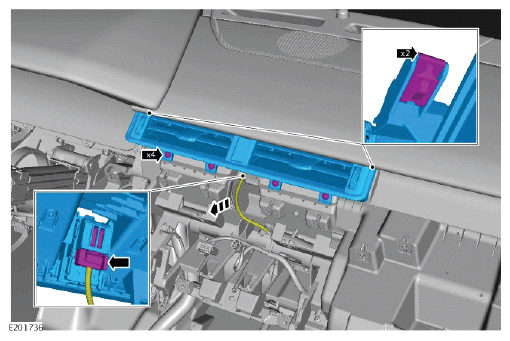

- Disconnect the electrical connector.
- Remove the center face level vent.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

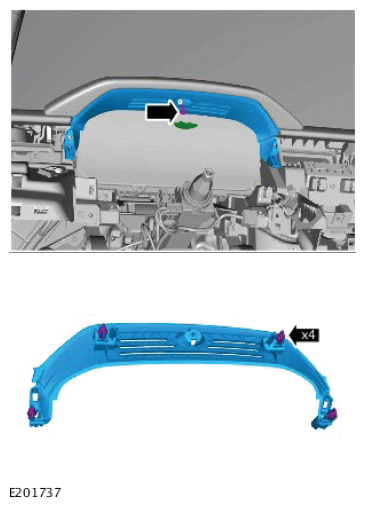

Remove the instrument cluster upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connectors.
- Remove the instrument cluster.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the windshield defroster trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

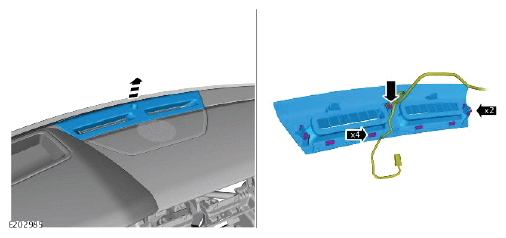

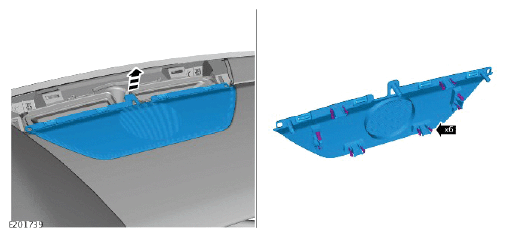

Remove the instrument panel center speaker grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

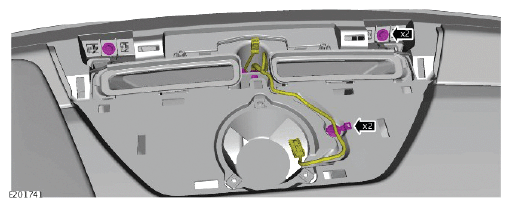

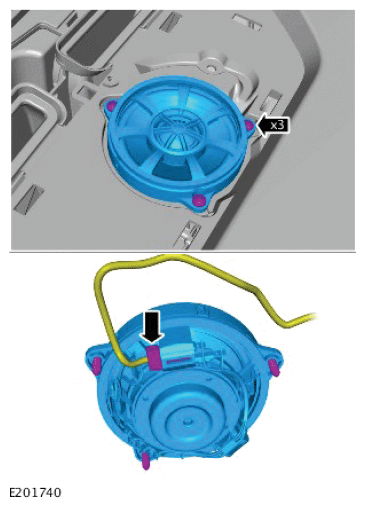

Remove the instrument panel center speaker.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel upper bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

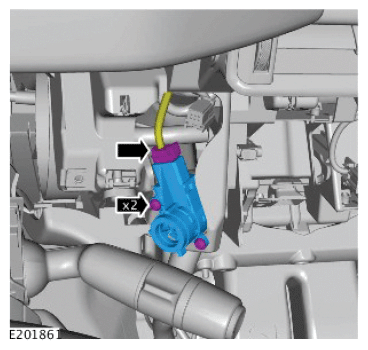

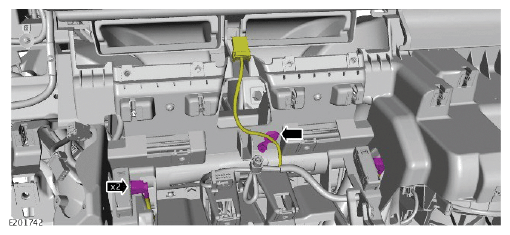

Disconnect the 2 electrical connectors from the bluetooth antennas.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 electrical connectors from the USB module.

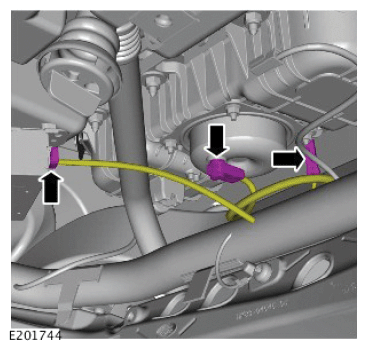

- Release the instrument panel harness from the 5 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

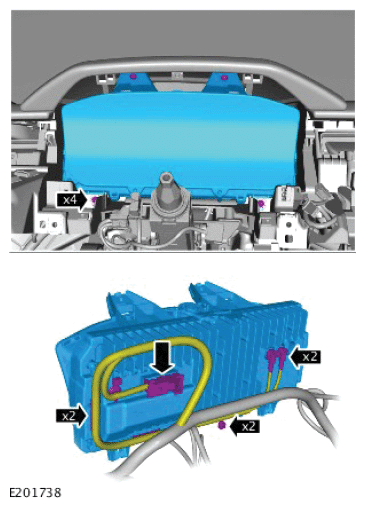

- Disconnect the passenger airbag harness connections.
- Disconnect the electrical connector from the ioniser assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

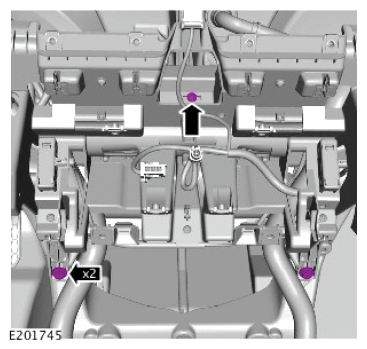

Remove the instrument panel bolts at center side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

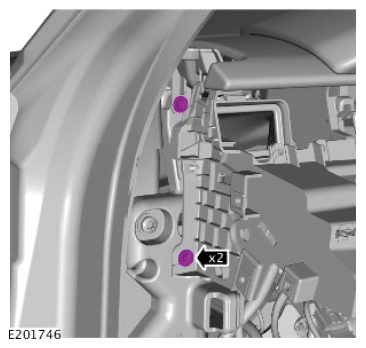

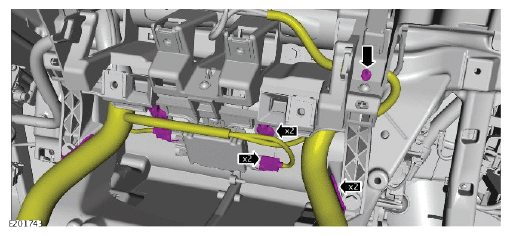

Remove the instrument panel bolts at driver side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

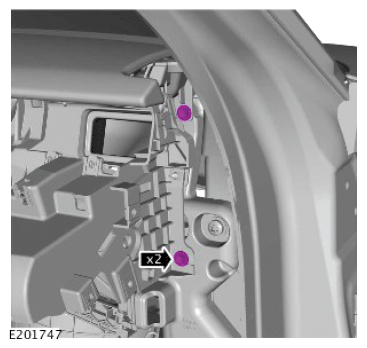

Remove the instrument panel bolts at passenger side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

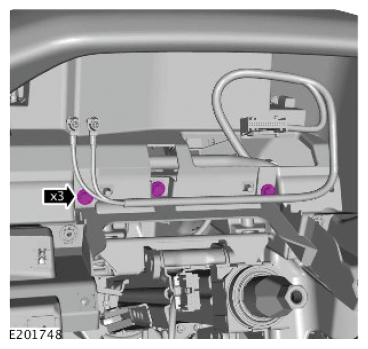

Remove the instrument panel bolts at cluster.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

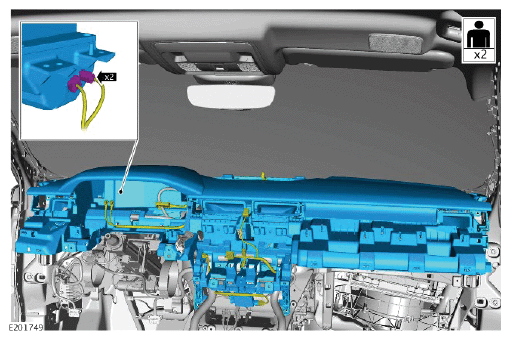

- Disconnect the 2 electrical connectors.
- Remove the instrument panel assembly.
NOTE: Only carry out the following step(s) if the new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

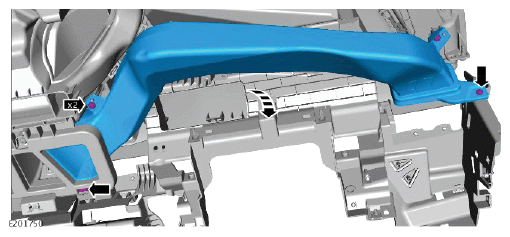

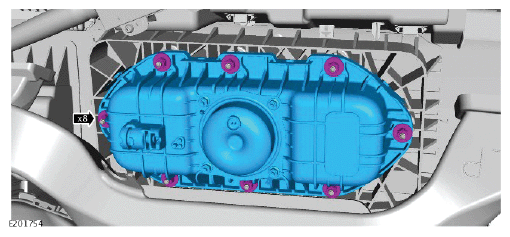

Remove the heater duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Head Up Display (HUD).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

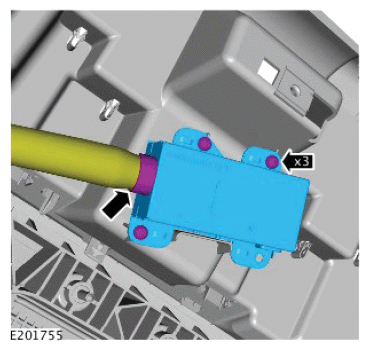

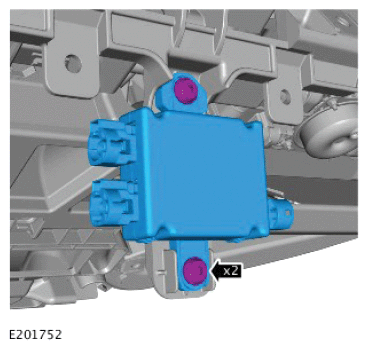

Remove the USB module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

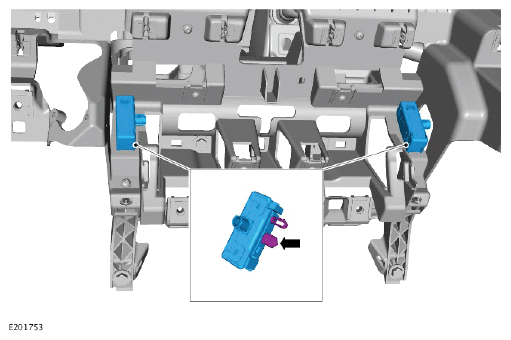

Remove the 2 bluetooth antennas.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

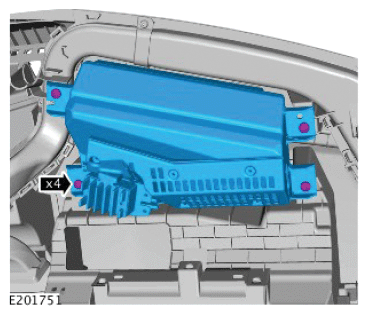

Remove the Passenger Airbag Module (PAB).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the ioniser.
