In-Vehicle Crossbeam (G2018929): Removal

CAUTION: Take extra care not to damage the wiring harness clips.
NOTE: Note the position of the wiring harnesses to aid installation.

The following step(s) applies to:

All vehicles

  1. Make the air bag supplemental restraint system (SRS) safe.

    Refer to: STANDARD WORKSHOP PRACTICES

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  4. Partially drain the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (INGENIUM I4 2.0L Diesel, General Procedures).

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (V6 S/C 3.0L Petrol, General Procedures).

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (TDV6 3.0L Diesel, General Procedures).

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (INGENIUM I4 2.0L Petrol, General Procedures).

  5. Evacuate the Air Conditioning (A/C) system.

    Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING

  6. NOTE: Repeat the procedure for the other side.

    Remove the front seats.

    Refer to: FRONT ROW SEAT - VEHICLES WITH: POWER SEATS

    Refer to: FRONT ROW SEAT - VEHICLES WITHOUT: POWER SEATS

  7. Remove the steering column.

    Refer to: STEERING COLUMN

  8. Remove the instrument panel console.

    Refer to: INSTRUMENT PANEL CONSOLE

  9. Remove the secondary bulkhead left panel.

    Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L DIESEL

    Refer to: SECONDARY BULKHEAD LEFT PANEL - V6 S/C 3.0L PETROL

    Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL

    Refer to: SECONDARY BULKHEAD LEFT PANEL - INGENIUM I4 2.0L PETROL

The following step(s) applies to:

Left-hand drive vehicles

  1. Remove the secondary bulkhead right panel.

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - TDV6 3.0L DIESEL

    Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL

  2. CAUTION: Be prepared to collect escaping coolant.

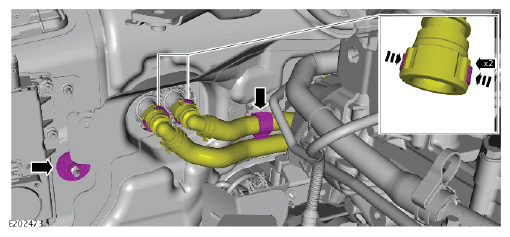

    G12564244Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 coolant hoses.
    • Remove the nut.

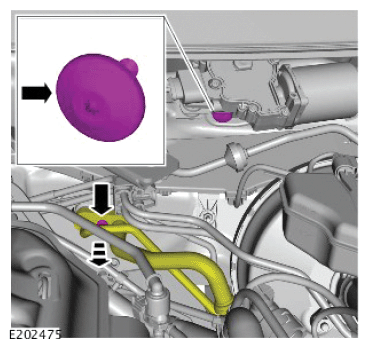

  3. CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G12564245Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Disconnect the Air Conditioning (A/C) pipes.
    • Remove the torx bolt.

The following step(s) applies to:

Right-hand drive vehicles

  1. CAUTION: Be prepared to collect escaping coolant.

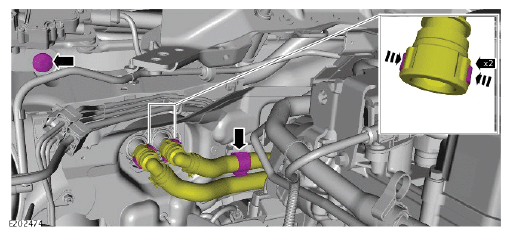

    G12564246Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 coolant hoses.
    • Remove the torx bolt.
  2. CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

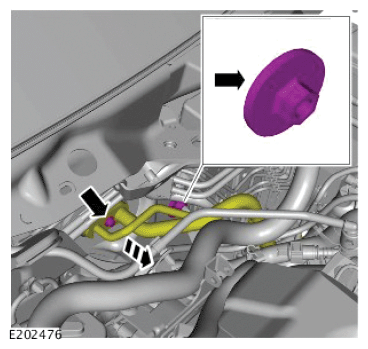

    G12564247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the nut.
    • Disconnect the Air Conditioning (A/C) pipes.

The following step(s) applies to:

All vehicles

  1. NOTE: Repeat the step for the other side.

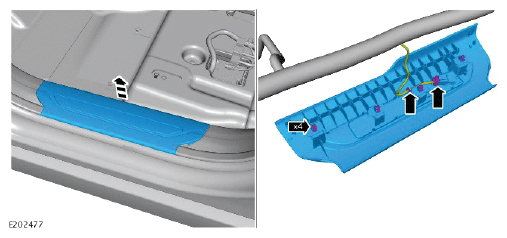

    G12564248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the front treadplate trim panel.
    • Disconnect the electrical connector.
  2. CAUTION: Drivers side only.

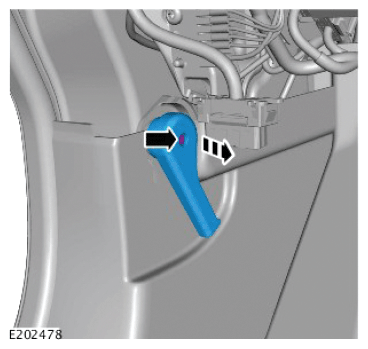

    G12564249Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the hood release lever.

  3. CAUTION: Drivers side only.

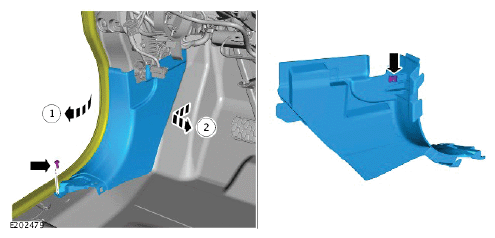

    G12564250Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cowl side trim panel.

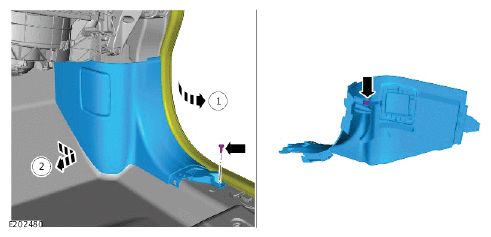

  4. CAUTION: Passengers side only.
    G12564251Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cowl side trim panel.

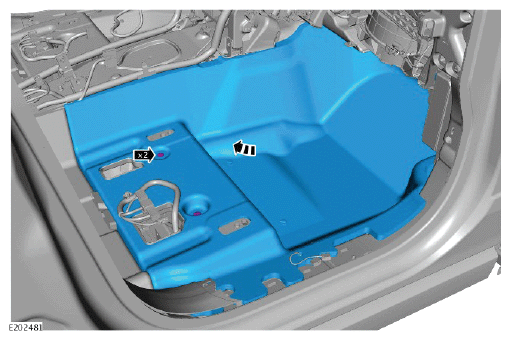

  5. G12564252Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the passenger floor mat.

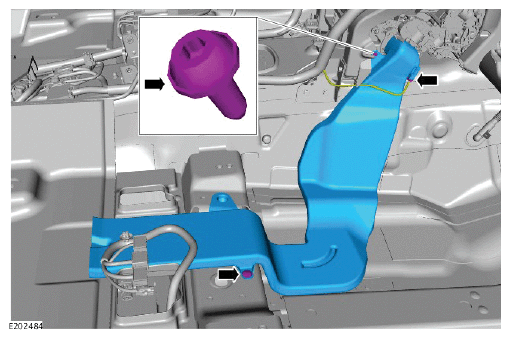

  6. G12564253Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the floor heater duct on the passenger side.

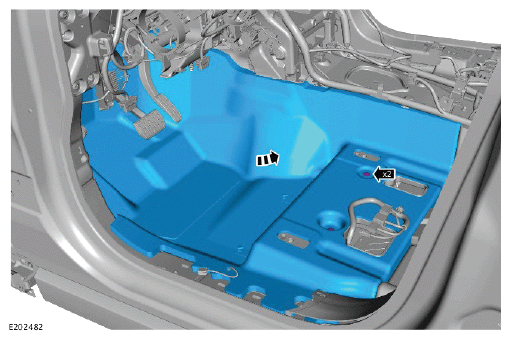

  7. G12564254Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the driver floor mat.

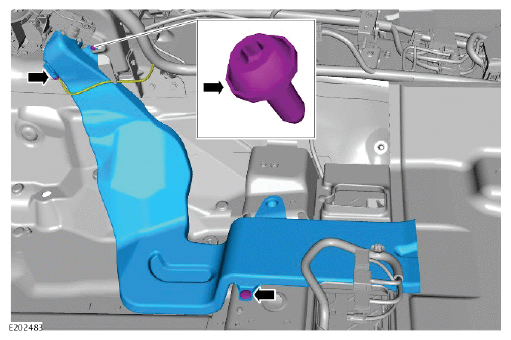

  8. G12564255Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the floor heater duct on the driver side.

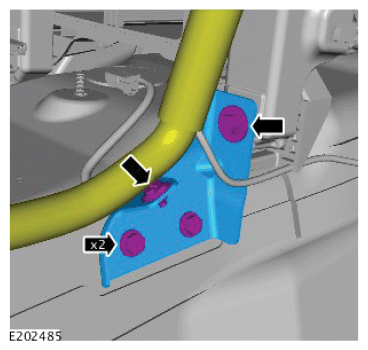

  9. NOTE: Repeat the step for the other side.
    G12564256Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cross car beam lower bracket.

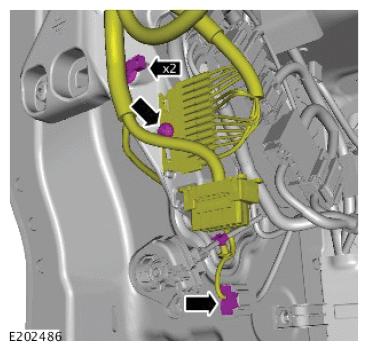

  10. G12564257Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the instrument panel wiring harness at driver side 'A' Pillar.

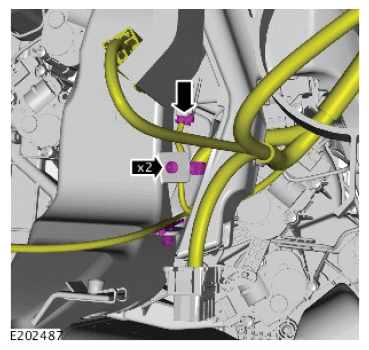

  11. G12564258Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness.

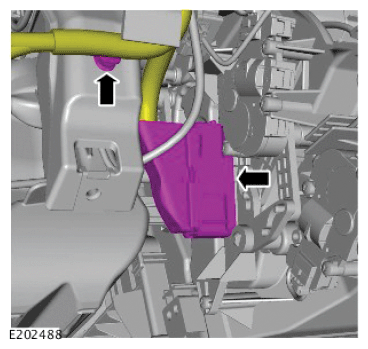

  12. G12564259Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the electric booster heater.
    • Release the wiring harness.

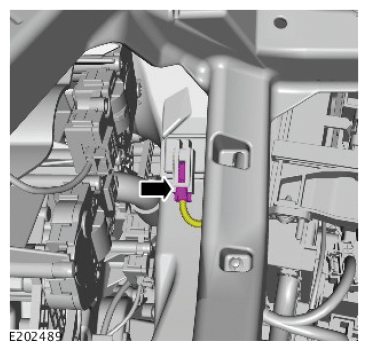

  13. G12564260Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

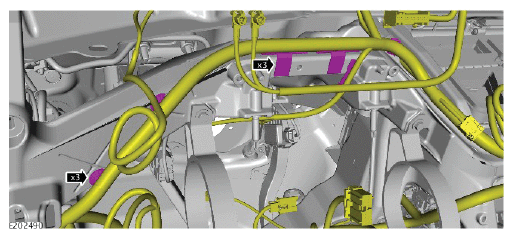

  14. G12564261Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness.

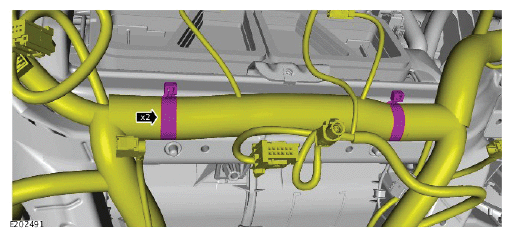

  15. G12564262Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness.

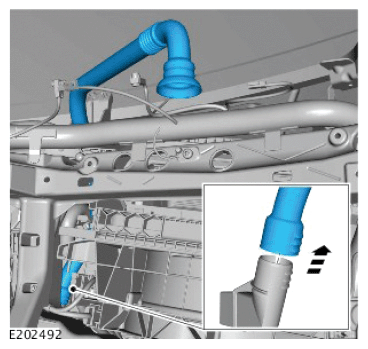

  16. G12564263Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the glovebox cooling duct.

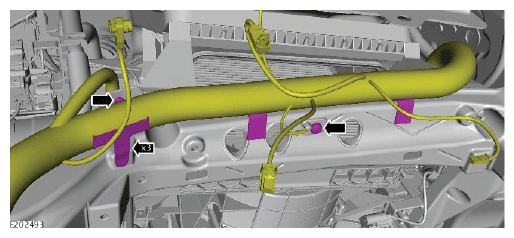

  17. G12564264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the ground cable bolt.
    • Release the wiring harness.

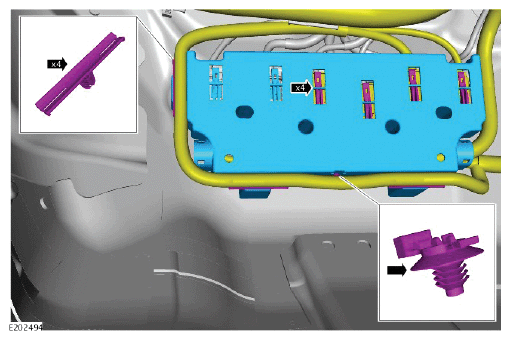

  18. G12564265Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness.
    • Remove the cover.

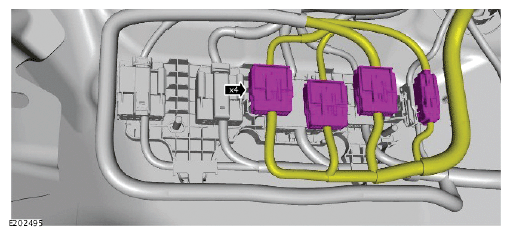

  19. G12564266Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 4 electrical connectors.

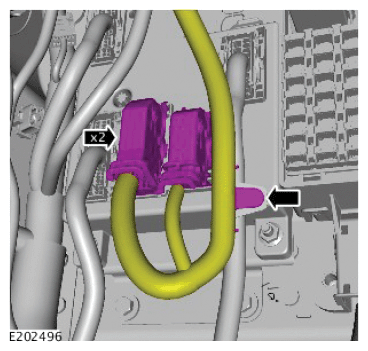

  20. G12564267Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 electrical connectors.

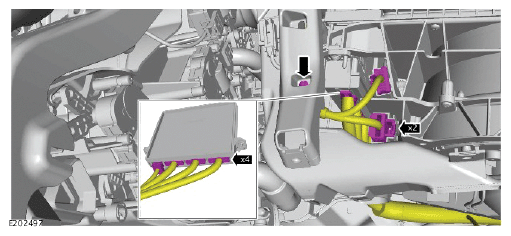

  21. G12564268Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 6 electrical connectors.
    • Release the wiring harness.

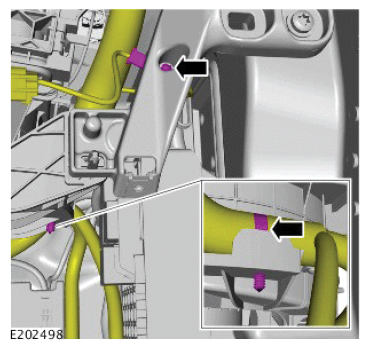

  22. G12564269Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness.

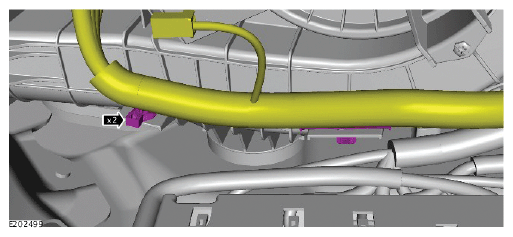

  23. G12564270Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness.

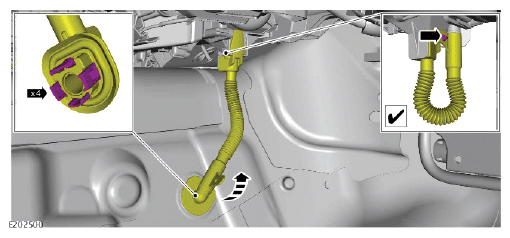

  24. NOTE: Repeat the step for the other side.
    G12564271Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 evaporator drain tubes and aside.

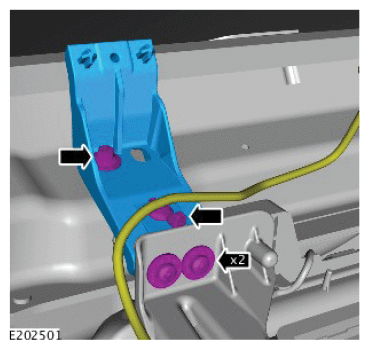

  25. G12564272Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the bracket.

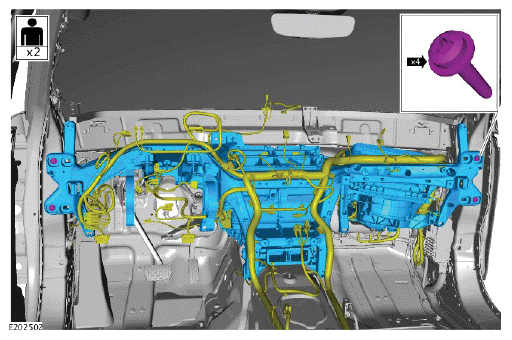

  26. CAUTION: Take extra care not to damage the wiring harnesses.
    G12564273Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    With assistance, remove the in-vehicle crossbeam.

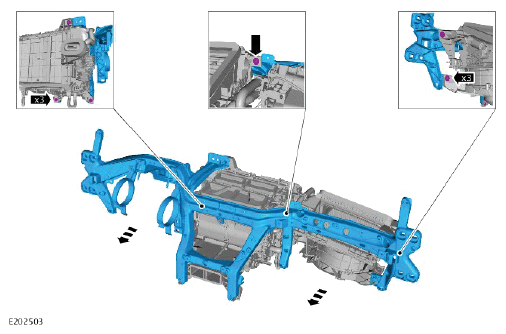

  27. G12564274Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the in-vehicle crossbeam from the climate control assembly.
