Transfer Case Draining And Filling

DRAINING

1. WARNING: Make sure to support the vehicle with axle stands.
   CAUTION: Make sure the vehicle is on a flat level surface.

   Raise and support the vehicle.

2. Remove the engine undershield.

   Refer to: ENGINE UNDERSHIELD

3. CAUTION: Make sure that the area around the component is clean and free of foreign material.

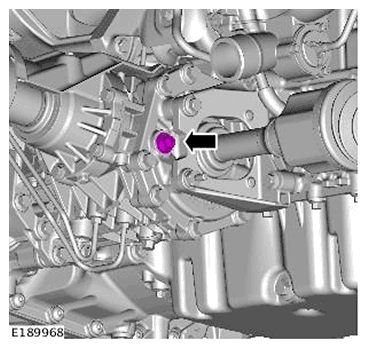

   Remove the filler plug.

4. WARNING: Be prepared to collect escaping fluid.
   NOTE: Drain the fluid into a suitable container.

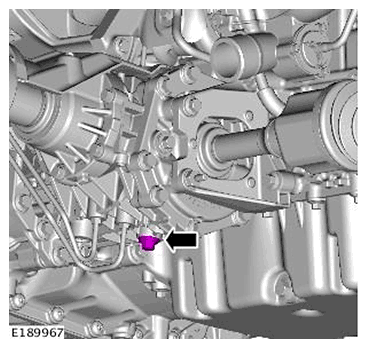

   Remove the drain plug.

5. NOTE: Install a new sealing washer.
   • Install the drain plug.
   • Torque Specification: 35 Nm

   FILLING

6. CAUTION: Do not overfill the transfer case.

   Fill the transfer case with 400 ml of fluid

   Refer to: SPECIFICATIONS

7. NOTE: Install a new sealing washer.
   • Install the filler plug.
   • Torque Specification: 35 Nm
8. Install the engine undershield.

   Refer to: ENGINE UNDERSHIELD
