Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.

  1. Raise and support the vehicle. JACKING

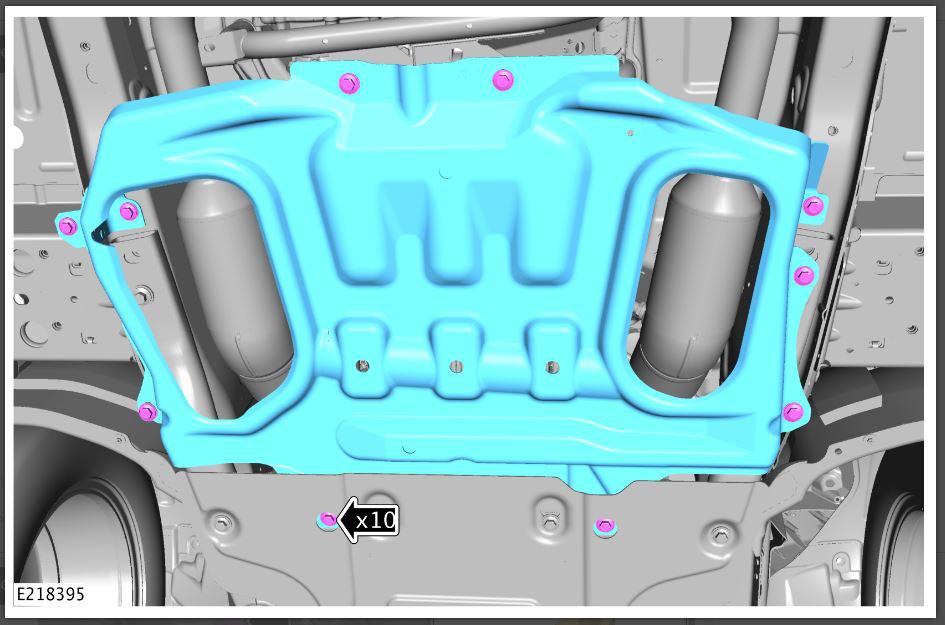

  2. G00570060

    Remove the transmission undershield.

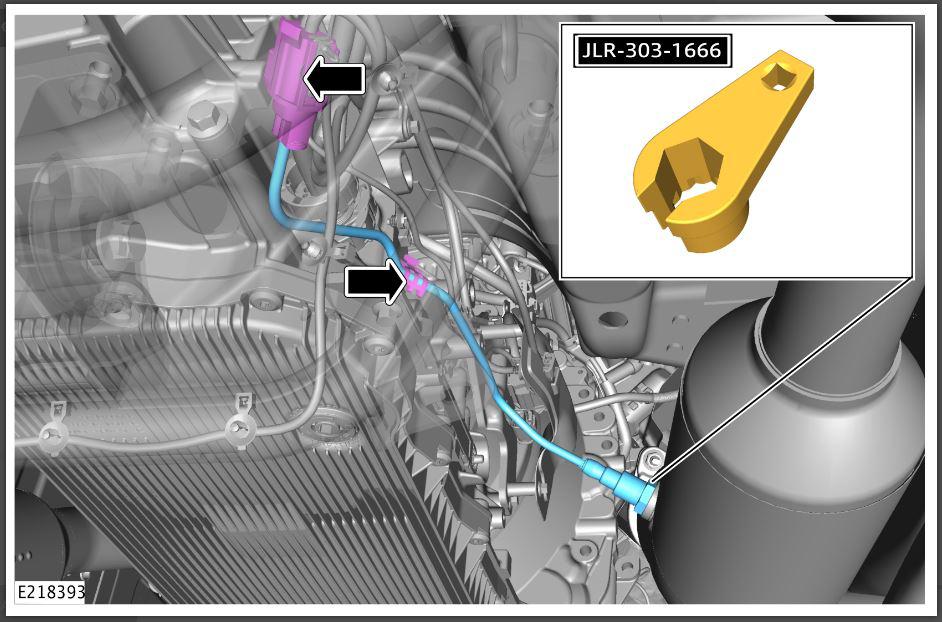

  3. G00570061
    • Disconnect the electrical connector.
    • Using the special tool remove the Heated Oxygen Sensor (HO2S). Special Tool(s): JLR-303-1666
