Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

  1. Raise and support the vehicle. JACKING

  2. Refer to: FRONT DRIVESHAFT - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL

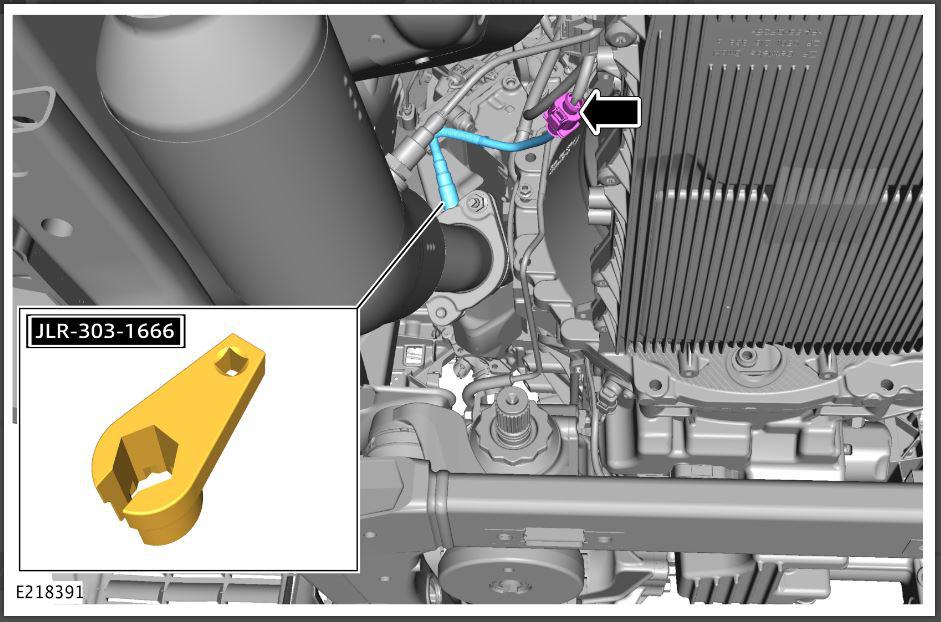

  3. G00570074
    • Disconnect the electrical connector.
    • Using the special tool remove the Heated Oxygen Sensor (HO2S). Special Tool(s): JLR-303-1666
