Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  2. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL
  3. Refer to: COWL PANEL GRILLE

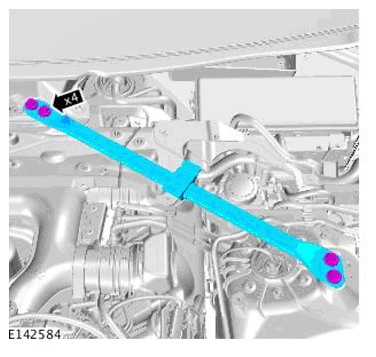

  4. G11699384

    Torque Specification: 55 Nm

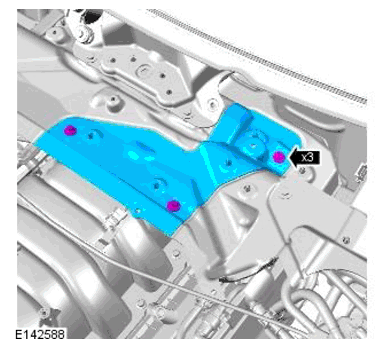

  5. G11699385

    Torque Specification: 6 Nm

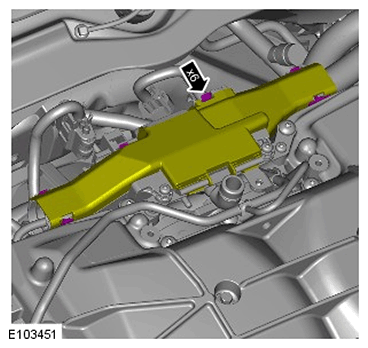

  6. G11689592

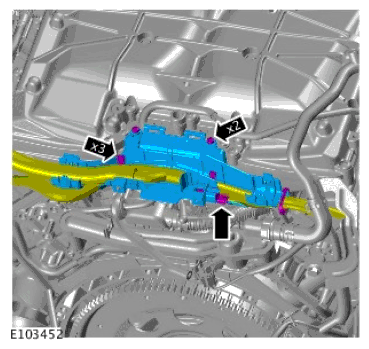

  7. G11689863

    Torque Specification: 10 Nm

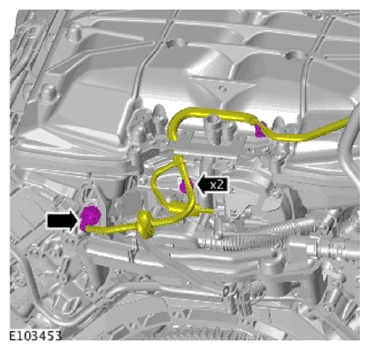

  8. G11689864

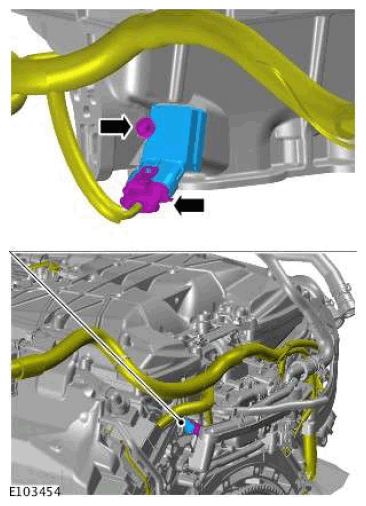

  9. G11608605

    Torque Specification: 5 Nm
