Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING
  2. Refer to: FUEL INJECTION COMPONENT CLEANING
  3. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS

  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
  6. Refer to: COWL PANEL GRILLE

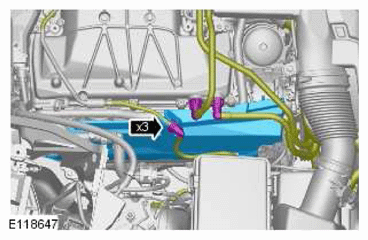

  7. CAUTION: Be prepared to collect escaping fluids.
    G11764959

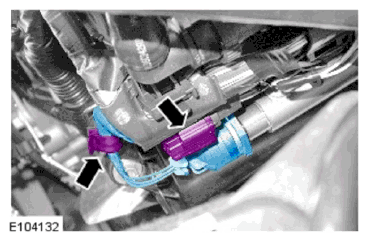

  8. CAUTION: Be prepared to collect escaping fluids.
    G11689758
    • Torque Specification: 32 Nm
