Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: ENGINE UNDERSHIELD
  2. Refer to: ENGINE OIL DRAINING AND FILLING
  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

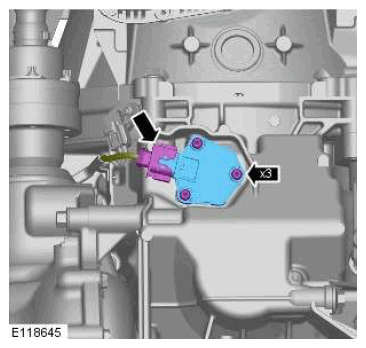

  4. CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.
    NOTE: Install a new O-ring seal.
    G11608593

    Torque Specification: 12 Nm
