Manifold Absolute Pressure (Map) Sensor

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

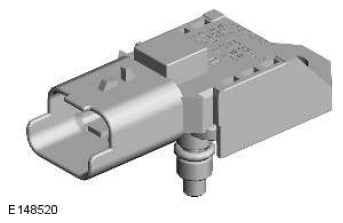

G11608565

The Manifold Absolute Pressure (MAP) sensor allows the PCM to calculate the load on the engine, which is used in the calculation of fuel injection time.

The MAP sensor is installed in the air inlet of the supercharger. The sensor is secured with a single screw and sealed with an O-ring. A three pin electrical connector provides the interface with the engine harness.

If the MAP sensor fails, the PCM adopts a default value of 1 bar (14.5 lbf/in.2 ).

With a failed MAP sensor, the engine will suffer from poor starting, rough running and poor drive ability.
