Knock Sensors

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

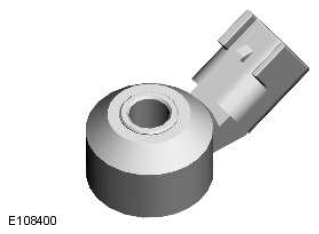

G11608564

The knock sensors are piezo-ceramic sensors that allow the Powertrain Control Module (PCM) to employ active knock control and prevent engine damage from pre-ignition or detonation.

Four knock sensors are installed on the inboard side of each cylinder head, two midway between the front two cylinders, and two midway between the rear two cylinders. Each knock sensor is secured with a single screw. On each knock sensor, a two pin electrical connector provides the interface with the engine harness.

The PCM compares the signals from the knock sensors with mapped values stored in memory to determine when detonation occurs on individual cylinders. When detonation is detected, the PCM retards the ignition timing on that cylinder for a number of engine cycles, then gradually returns it to the original setting.

The PCM cancels closed loop control of the ignition system if the signal received from a knock sensor becomes implausible. In these circumstances the PCM defaults to base mapping for the ignition timing. This ensures the engine will not become damaged if low quality fuel is used. The Malfunction Indicator Lamp (MIL) will not illuminate, although the driver may notice that the engine 'pinks' in some driving conditions and displays a drop in performance and smoothness.

The PCM calculates the default value if one sensor fails on each bank of cylinders.
