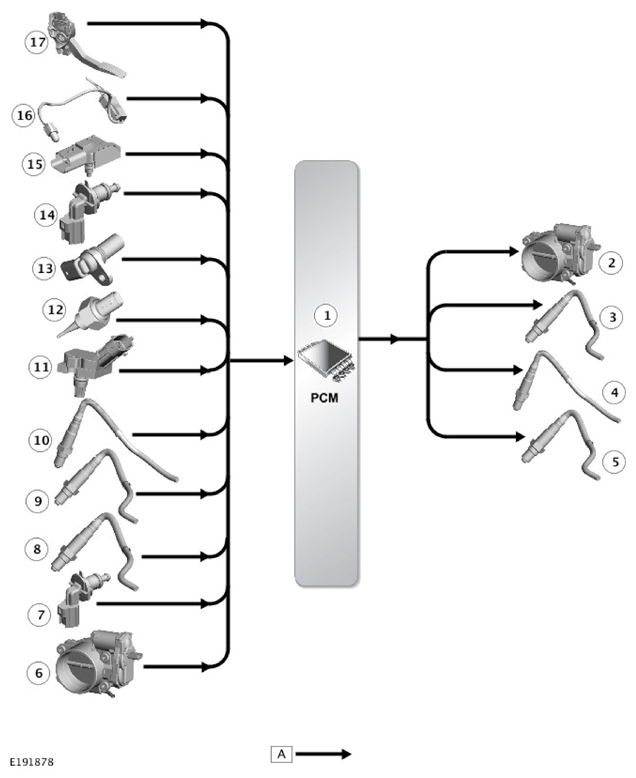

A = HARDWIRED
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Electric throttle |
| 3 | Heated Oxygen Sensor (HO2S) - Mid catalyst (2 off) |
| 4 | Heated Oxygen Sensor (HO2S) - Post catalyst (2 off) |
| 5 | Heated Oxygen Sensor (HO2S) - Pre catalyst (2 off) |
| 6 | Electric throttle |
| 7 | Engine Coolant Temperature (ECT) sensor 1 |
| 8 | Heated Oxygen Sensor (HO2S) - Mid catalyst (2 off) |
| 9 | Heated Oxygen Sensor (HO2S) - Post catalyst (2 off) |
| 10 | Heated Oxygen Sensor (HO2S) - Pre catalyst (2 off) |
| 11 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 12 | Charge air temperature sensor |
| 13 | Crankshaft Position (CKP) sensor |
| 14 | Engine Coolant Temperature (ECT) sensor 2 |
| 15 | Manifold Absolute Pressure (MAP) sensor |
| 16 | Ambient Air Temperature (AAT) sensor |
| 17 | Accelerator Pedal Position (APP) sensor |
