1 Of 2

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

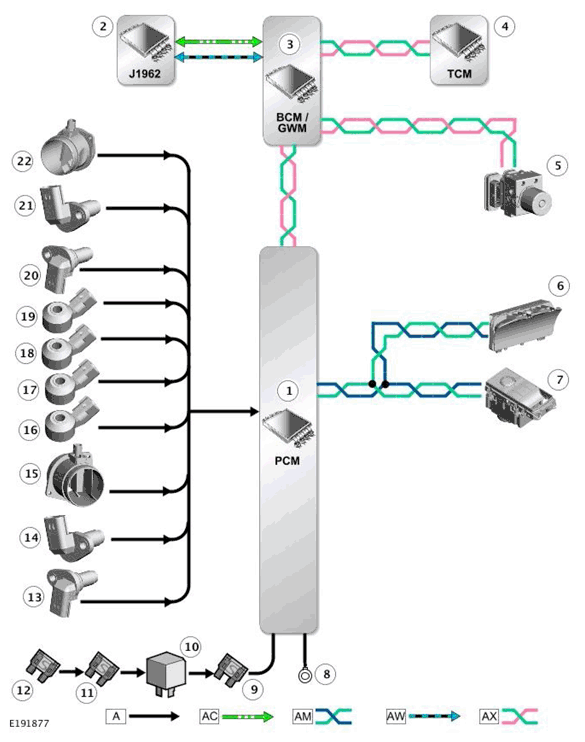

G11699451

A = HARDWIRED; AC = DIAGNOSTIC; AM = HIGH SPEED CAN CHASSIS SYSTEMS BUS; AW = ETHERNET; AX = FLEXRAY

ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 J1962 diagnostic connector
3 Body Control Module/Gateway Module (BCM/GWM)
4 Transmission Control Module (TCM)
5 Anti-lock Brake System (ABS) control module
6 Instrument Cluster (IC)
7 Terrain Response® switchpack
8 Ground
9 Fuse - power supply Engine Junction Box (EJB)
10 PCM Relay - Engine Junction Box (EJB)
11 Fuse - power supply Auxiliary Junction Box (AJB)
12 Fuse - power supply Battery Junction Box (BJB)
13 Left intake Camshaft Position (CMP) sensor
14 Left exhaust Camshaft Position (CMP) sensor
15 Left Mass Air Flow and Temperature (MAFT) sensor
16 Left front knock sensor
17 Left rear knock sensor
18 Right front knock sensor
19 Right rear knock sensor
20 Right intake Camshaft Position (CMP) sensor
21 Right exhaust Camshaft Position (CMP) sensor
22 Right Mass Air Flow and Temperature (MAFT) sensor
