Electronic Engine Controls V8 5.0L S/C Petrol - 1 Of 4
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2014 Land Rover Range Rover, and 2013 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

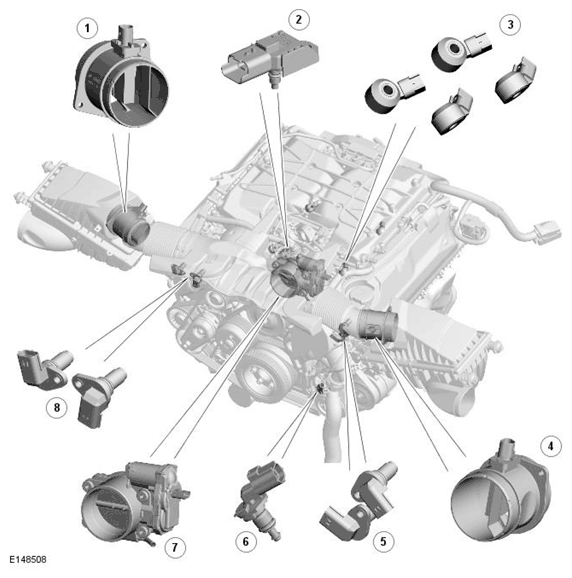

| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Mass Air Flow and Temperature (MAFT) sensor |
| 2 | Manifold Absolute Pressure (MAP) sensor |
| 3 | Knock sensor (4 off) |
| 4 | Left Mass Air Flow and Temperature (MAFT) sensor |
| 5 | Left Camshaft Position (CMP) sensors (2 off) |
| 6 | Engine Coolant Temperature (ECT) sensor 2 |
| 7 | Electric throttle |
| 8 | Right Camshaft Position (CMP) sensors (2 off) |
