Diesel Exhaust Fluid System Dosing Malfunction Detected

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

Legislation requires that Diesel Exhaust Fluid (DEF) is continuously available to the Selective Catalyst Reduction (SCR) system. An Instrument Cluster (IC) message center warning is displayed if a fault is detected which prevents correct system operation.

There are two warning stages displayed in the IC message center, until corrective action is carried out.

STAGE	WARNING	MESSAGE	CAUSE
Stage 1	Amber symbol	No Engine Restarts Possible in 400 km/250 miles	DEF range <400 km/250 miles
Stage 2	Red symbol	No Engine Restarts Possible	DEF range 0 km/0 miles

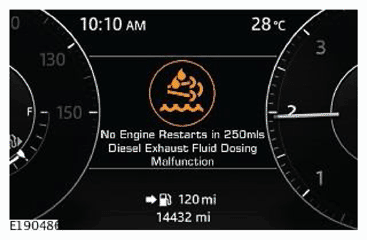

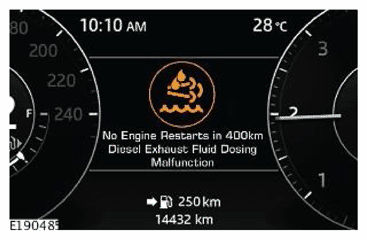

Stage 1

Stage 1 is an amber warning symbol with a distance reference. Fault diagnosis must be undertaken by an authorized Land Rover retailer within the distance range stated.

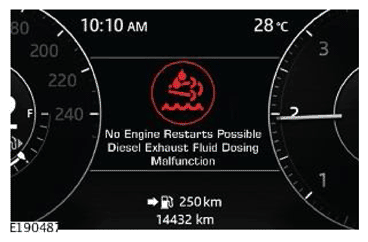

Stage 2

Stage 2 is a red warning symbol, this indicates the available distance for a corrective action has expired. The engine restart is inhibited and fault diagnosis is required to be undertaken by an authorized Land Rover retailer.
