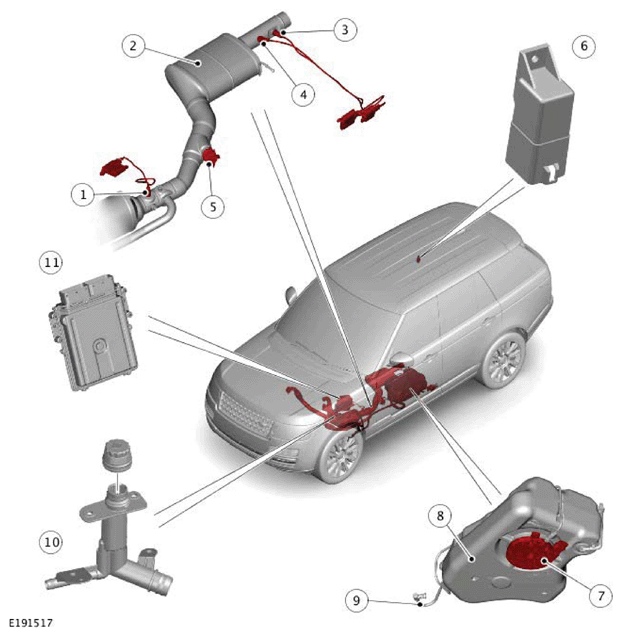

Component Location
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pre Selective Catalyst Reduction (SCR) NOx sensor - North American Specification (NAS) market vehicles only |
| 2 | Selective Catalyst Reduction (SCR) catalytic converter |
| 3 | Post Selective Catalyst Reduction (SCR) NOx sensor |
| 4 | Post Selective Catalyst Reduction (SCR) soot sensor - North American Specification (NAS) market vehicles only |
| 5 | Diesel Exhaust Fluid (DEF) injector |
| 6 | Diesel Exhaust Fluid (DEF) heater control unit |
| 7 | Diesel Exhaust Fluid (DEF) tank module |
| 8 | Diesel Exhaust Fluid (DEF) tank |
| 9 | Diesel Exhaust Fluid (DEF) line |
| 10 | Diesel Exhaust Fluid (DEF) filler neck |
| 11 | Powertrain Control Module (PCM) |
