Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

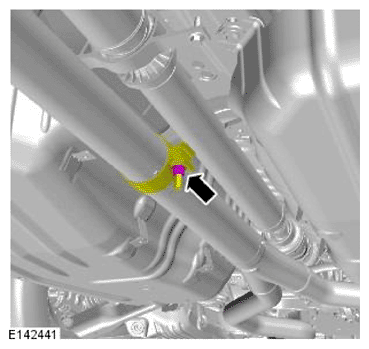

  2. G11708101

    Torque Specification: 55 Nm

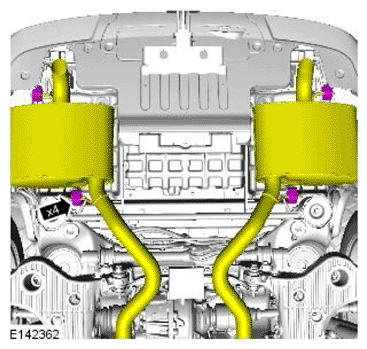

  3. NOTE: Make sure that the exhaust system is supported with a suitable transmission stand.
    G11708042

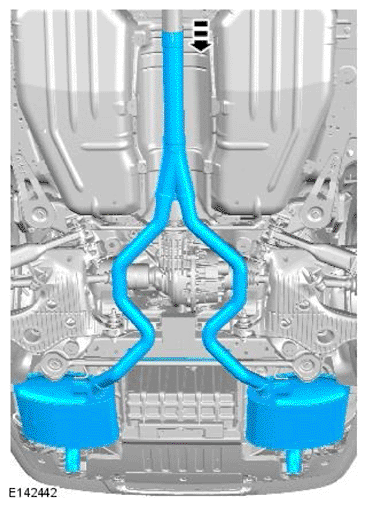

  4. NOTE: This step requires the aid of another technician.
    G11708103
