Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: The procedure must be carried out on both sides.

    Refer to: REAR MUFFLER

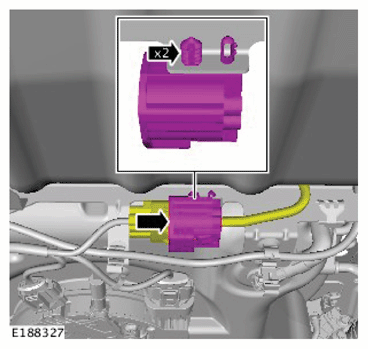

  3. G11769079
  4. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

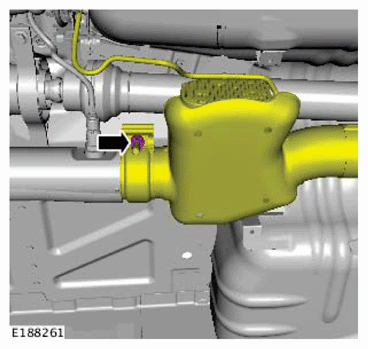

    G11769042

    Torque Specification: 55 Nm

  5. NOTE: This step requires the aid of another technician.

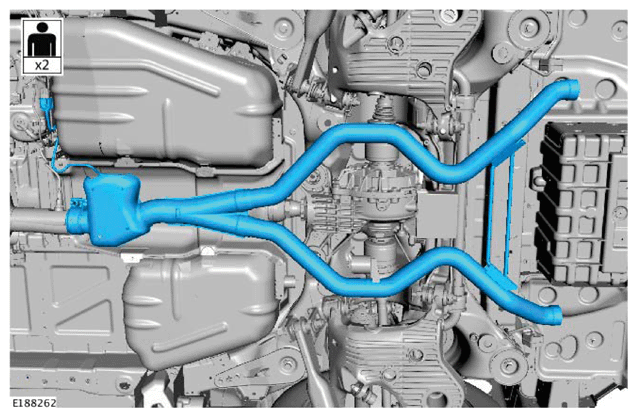

G11769081
