Selective Catalyst Reduction System
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Bi-Turbocharger system shown, single turbocharger system is similar.

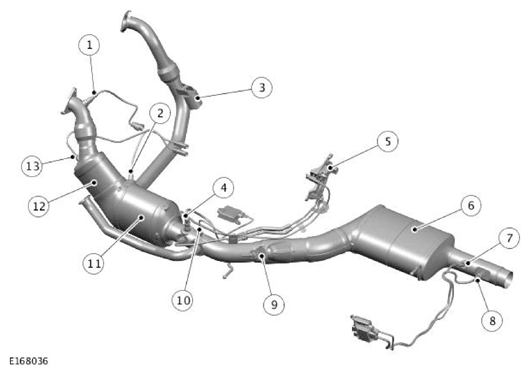

| ITEM | DESCRIPTION |
|---|---|
| 1 | Heated Oxygen Sensor (HO2S) |
| 2 | Pre DPF exhaust gas temperature sensor |
| 3 | Mass damper (Bi-Turbocharger vehicles only) |
| 4 | Pre Selective Catalyst Reduction NOx sensor |
| 5 | Differential pressure sensor |
| 6 | Selective Catalyst Reduction (SCR) catalytic converter |
| 7 | Post Selective Catalyst Reduction soot sensor |
| 8 | Post Selective Catalyst Reduction NOx sensor |
| 9 | DEF Dosing Module |
| 10 | Post DPF exhaust gas temperature sensor |
| 11 | Diesel Particulate Filter (DPF) |
| 12 | Catalytic converter |
| 13 | Pre-Catalyst Temperature Sensor |
For additional information, refer to: SELECTIVE CATALYST REDUCTION
