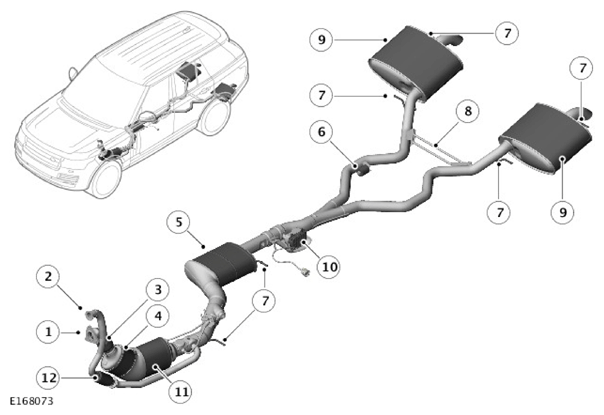

Component Location - Single Turbocharger Vehicles With Selective Catalyst Reduction System
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection - Turbocharger |
| 2 | Flange connection - Low Pressure Exhaust Gas Recirculation (LPEGR) valve |
| 3 | Flexible coupling |
| 4 | Catalytic converter |
| 5 | Selective Catalytic Reduction (SCR) catalytic converter |
| 6 | Mass damper |
| 7 | Hanger bar |
| 8 | Exhaust Brace |
| 9 | Rear silencer |
| 10 | Exhaust pressure control valve |
| 11 | Diesel Particulate Filter (DPF) |
| 12 | Flexible coupling |
